Product Description

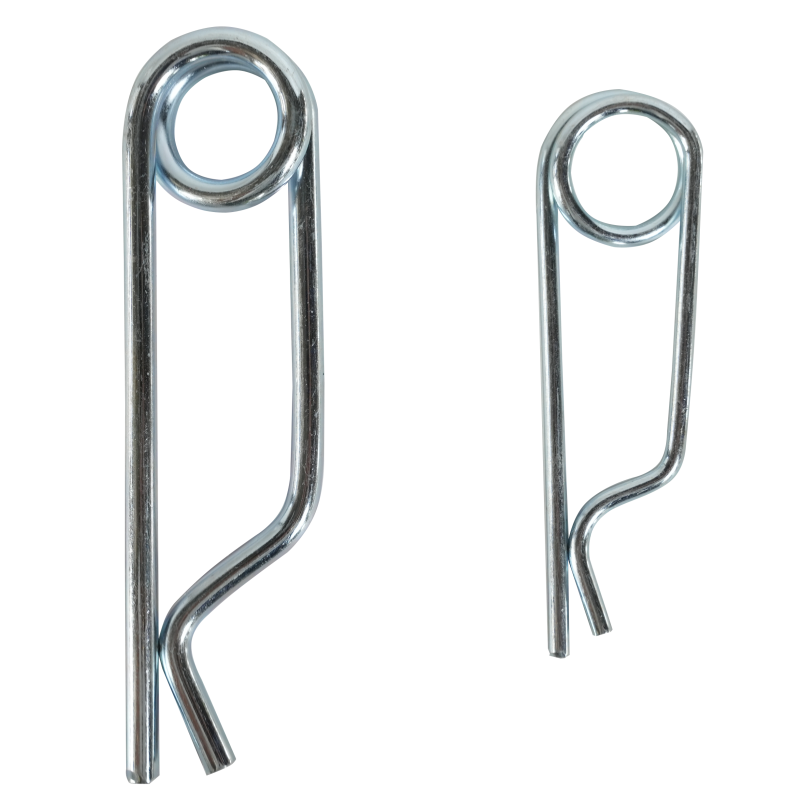

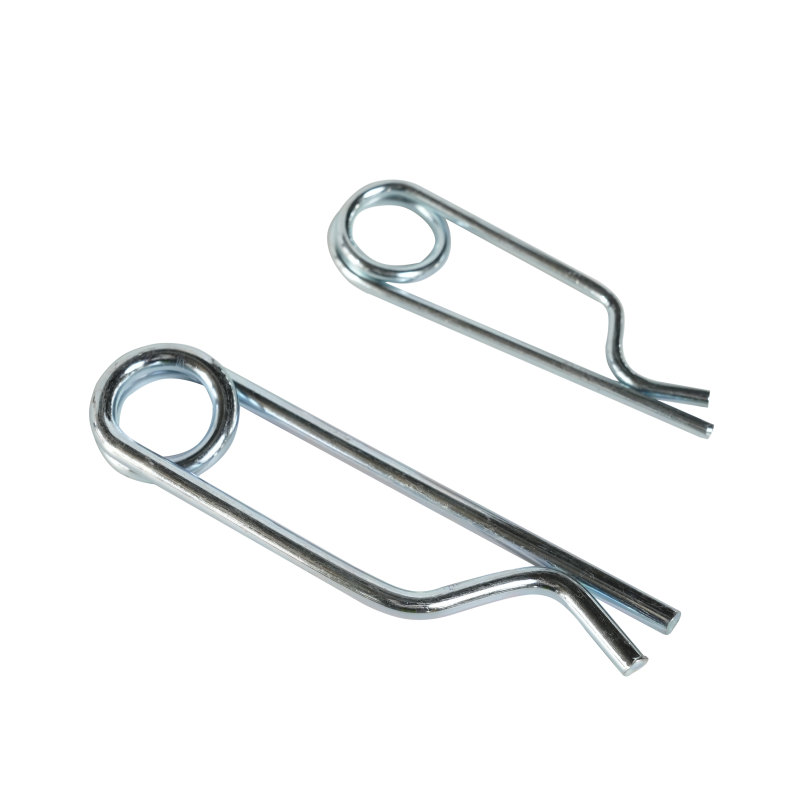

As a premier manufacturer and direct supplier of critical infrastructure components, we present the Ring Lock Bailey Pin Retaining Ring. Engineered for absolute structural integrity, this locking device acts as the ultimate fail-safe for modular bridge connections, effectively neutralizing the risks of pin withdrawal under severe environmental stresses.
Manufactured from premium spring steel with exceptional resilience.
Facilitates rapid, tool-free installation for time-sensitive projects.
Delivers a robust pull-out resistance exceeding 5 kN.
Sourced directly from our specialized production facility for guaranteed quality.
The structural integrity of any modular bridge relies heavily on the precision of its smallest components. This retaining ring is meticulously engineered to serve as the critical locking mechanism for Bailey pins. Crafted from premium-grade spring steel, the ring snaps into the annular groove of the pin with a distinct, reassuring click. This tactile feedback confirms that the elastic radial pressure is actively gripping the pin, creating a secure hold that resists axial withdrawal forces caused by constant heavy traffic vibrations, unexpected impacts, or continuous gravitational pull. The smooth, precision-treated finish—whether zinc-plated or phosphated—feels sleek to the touch while offering an impenetrable barrier against harsh environmental elements and corrosive moisture.
When deployed in demanding field conditions, the split circular design intelligently compensates for manufacturing tolerances and the inevitable wear within pin holes. It acts as a dynamic tensioner, adapting to the micro-movements of the bridge structure without ever compromising its grip. By eliminating the risk of catastrophic pin loss, this retaining ring transforms a standard pinned connection into a highly reliable, permanent joint. Project managers and field engineers can proceed with absolute confidence, knowing that the structural framework is locked down securely, which dramatically minimizes maintenance downtime and maximizes overall operational safety across the entire lifespan of the infrastructure.
Specification Category | Details & Parameters |
|---|---|
Product Name | Ring Lock Bailey Pin Retaining Ring |
Main Material | Spring steel (e.g., 65Mn), Stainless steel (for corrosive environments) |
Surface Treatment | Zinc plating or Phosphating |
Wire Diameter | 3–5 mm |
Product Type | Flat-spring (stamped), Wire-formed |
Design Pull-out Force | ≥5 kN |
Fatigue Life / Reuse | ≥50 installation/removal cycles without failure |
Low-Temperature Toughness | ≥27 J (at −40°C environment) |
Quality Certification | ISO9001, meets national standards, material certificates & test reports available |
Customization Service | Supported (Free structure calculation, drawings, and non-standard customization) |
Origin / Manufacturer | Zhenjiang, Jiangsu, China (Direct source factory) |
Our retaining rings are designed to elevate the safety standards of modular construction. By focusing on precise metallurgical properties and user-centric design, these components deliver unmatched reliability in the field.
Dynamic Elastic Compensation: The innate flexibility of the spring steel actively compensates for the gradual wear of pins and holes, maintaining a tight, vibration-proof fit over years of continuous use.
Optimized Clamping Variations: Available in both flat-spring (stamped) designs for maximum clamping force and wire-formed designs for enhanced ease of handling during rapid deployments.
Predictable Dislodgement Threshold: Engineered to remain locked under moderate axial forces, requiring a deliberate, designed pull-out force to remove, thereby preventing accidental uncoupling.
Visual Inspection Readiness: The clean surface treatment and precise gap distribution allow maintenance crews to instantly verify proper seating and identify any rare instances of plastic deformation at a glance.
The foundation of a secure bridge connection lies in the molecular structure of its locking components. We utilize high-strength spring steel, specifically the 65Mn grade, renowned for its exceptional yield strength and elasticity. For projects situated in highly corrosive coastal or industrial environments, we offer premium stainless steel variants. This ensures that the retaining ring maintains its critical radial pressure regardless of the atmospheric conditions.
Advanced Anti-Rust Coatings: Each ring undergoes rigorous zinc plating or phosphating. This not only provides a sleek, professional appearance but creates a formidable shield against oxidation, preventing rust from compromising the steel's elasticity.
Heat-Treated Resilience: The raw materials are subjected to precise heat treatment processes, locking in the perfect balance of toughness and flexibility needed to snap into grooves without permanent deformation.
Corrosion Defiance: By preventing surface degradation, the treatment ensures the ring can be safely reused multiple times without the risk of brittle fracture caused by environmental wear.
Procurement professionals and lead engineers require hard data to ensure project safety. This retaining ring is strictly calibrated to meet and exceed the most demanding technical thresholds, ensuring that every connection remains steadfast under the harshest operational realities.
Verified Pull-Out Resistance: With a designed pull-out force of ≥5 kN, the ring fiercely resists the gradual withdrawal of pins caused by the rhythmic pounding of heavy truck traffic or railway loads.
Sub-Zero Reliability: Engineered for global deployment, the material guarantees a low-temperature toughness of ≥27 J at −40°C, preventing the metal from shattering in freezing climates.
High-Cycle Endurance: Tested to withstand ≥50 rigorous installation and removal cycles without structural failure, matching the fatigue life of the Bailey pins themselves and maximizing component ROI.
Precision Fitment: The 3–5 mm wire diameter is meticulously drawn to precisely match standard annular groove dimensions, ensuring full seating to the bottom of the groove with an even gap distribution.
Installation Method Recommendation
In emergency response scenarios or tight construction schedules, time is an invaluable asset. The design of this retaining ring prioritizes rapid, intuitive handling without sacrificing an ounce of security, significantly reducing manual labor hours on site.
Tool-Free Application: Designed to be installed by hand or with standard snap-ring pliers, eliminating the need for specialized, heavy equipment on the bridge deck.
Tactile Confirmation: The satisfying snap as the ring seats into the groove provides immediate physical confirmation to the operator that the connection is fully secured.
Simplified Inspection Protocols: Maintenance teams can easily conduct periodic visual checks. After any removal, the rings can be quickly inspected for plastic deformation or microscopic cracks before safe reuse.
Skill Assessment Standard: The intuitive nature of the installation makes it an ideal, standardized metric for training drills, ensuring all crew members can execute flawless connections rapidly.
From temporary access roads to permanent structural installations, the retaining ring is a mandatory, non-negotiable safety element. Its robust design adapts seamlessly to a wide spectrum of demanding engineering environments.
High-Vibration Environments: Essential for dense truck traffic corridors, railway trestles, and mining bridges where continuous kinetic energy threatens to vibrate standard pins loose.
Emergency Rescue & Military Operations: Critical for rapid-deployment bridges where fast, tool-free hand installation saves precious time during crisis response.
Permanent Modular Bridges: Serves as a long-term locking element requiring minimal periodic inspection, ensuring decades of stable service.
Transit Security: Crucial during the transportation of pre-assembled bridge sections, preventing pins from vibrating out while in transit to the erection site.
Inventory Management: Regarded as a vital spare part, strictly stocked on a 1:1 ratio with Bailey pins to guarantee uninterrupted field operations.
Trust in infrastructure components is built on transparent, rigorous quality assurance. Our manufacturing processes are heavily scrutinized to ensure every single ring lock performs exactly as specified, meeting the strict compliance requirements of international engineering projects.
ISO9001 Certified Manufacturing: Every production phase, from wire drawing to final coating, is governed by strict ISO9001 quality management protocols.
Comprehensive Documentation: We provide full traceability, offering detailed material certificates, laboratory test reports, and official quality certificates with every shipment.
National Standard Compliance: The precise dimensions, elasticity, and load-bearing capabilities strictly adhere to established national engineering standards for modular bridge construction.
Defect-Free Guarantee: Rigorous batch testing ensures that the rings deliver consistent radial pressure, eliminating the risk of receiving brittle or misshapen components.
Partnering with a direct source manufacturer in Zhenjiang, Jiangsu, unlocks unparalleled advantages in both cost-efficiency and technical flexibility. We do not just produce standard parts; we engineer tailored solutions for complex structural challenges.
Dedicated Production Base: Operating our own specialized production lines dedicated exclusively to modular bridges and their precise components ensures massive output capacity and consistent quality.
Advanced Customization: We offer comprehensive non-standard customization, backed by free structural calculations and detailed CAD drawings to meet unique project specifications.
Holistic Component Supply: Beyond retaining rings, we manufacture the full spectrum of components, including SJ-200 and SJ-321 systems, panels, chords, and deck panels, acting as a single-source solution.
Engineering Heritage: Years of focused expertise allow us to anticipate field challenges, refining our designs to offer superior performance compared to generic market alternatives.
The successful deployment of a modular bridge requires more than just premium hardware; it demands expert knowledge. We stand by our clients long after the components leave our facility, ensuring flawless execution on the ground.
Detailed Erection Procedures: We provide step-by-step guidance. For instance, assembling bilateral panels into complete units (typically 27 pieces) while accurately adjusting bridge bearings on the abutment.
Heavy Lifting Consultation: We advise on crane capacities, such as utilizing lorry-mounted cranes for lifting combined truss units (approx. 11 tons, 27.4m length) and smaller cranes for 1-ton transoms.
Structural Stability Sequencing: Our manuals detail the exact sequence of installing sway bracing, paving deck panels, and adding upper chords to safely support equipment moving across the partially built structure.
24/7 Support & On-site Supervision: Backed by comprehensive manuals, video tutorials, and round-the-clock technical support, we also offer on-site supervision by experienced construction teams to guarantee absolute safety.
Selecting the right manufacturing partner is as critical as the structural components themselves. We bring a combination of vast production capability, engineering precision, and unwavering support to every project.
Direct Source Advantage: By eliminating intermediaries, we provide highly competitive pricing while maintaining strict oversight over the entire manufacturing lifecycle.
Proven Track Record: Our components secure infrastructure projects globally, trusted by lead engineers for their unyielding reliability in the face of extreme environmental challenges.
End-to-End Solutions: From the initial free structural calculations to the final on-site installation guidance, we provide a seamless, integrated procurement experience.
Unmatched Responsiveness: Our dedicated technical teams are available around the clock, ensuring that any field inquiries or urgent component requirements are addressed instantly.
Are you the direct manufacturer of these retaining components?
Yes, we are a direct manufacturer based in Zhenjiang, Jiangsu. We operate our own expansive production base with specialized lines dedicated entirely to modular bridges and their precise locking components.
What other main products do you manufacture alongside these rings?
We produce a comprehensive range of structural elements, including the SJ-200 Steel Bridge, SJ-321 Bailey Bridge, structural panels, reinforced chords, frames, deck panels, pins, bolts, and full sets of steel bridge components.
Can you supply customized designs for non-standard bridge projects?
Absolutely. We possess a robust engineering department that provides free structure calculations, detailed CAD drawings, and complete customization services to ensure our components perfectly match your specific structural requirements.
What certifications and quality assurances do you provide with your shipments?
Our manufacturing processes are fully ISO9001 certified, and all products meet rigorous national standards. Upon request, we supply comprehensive material certificates, laboratory test reports, and official quality certificates to satisfy strict project compliance.
Is there any installation guide or field support provided for the bridge erection?
Yes, we provide extensive support including detailed drawings, comprehensive manuals, and instructional videos. Furthermore, we offer on-site supervision by experienced engineers and maintain a 24-hour technical service hotline to assist your construction team at every phase.
