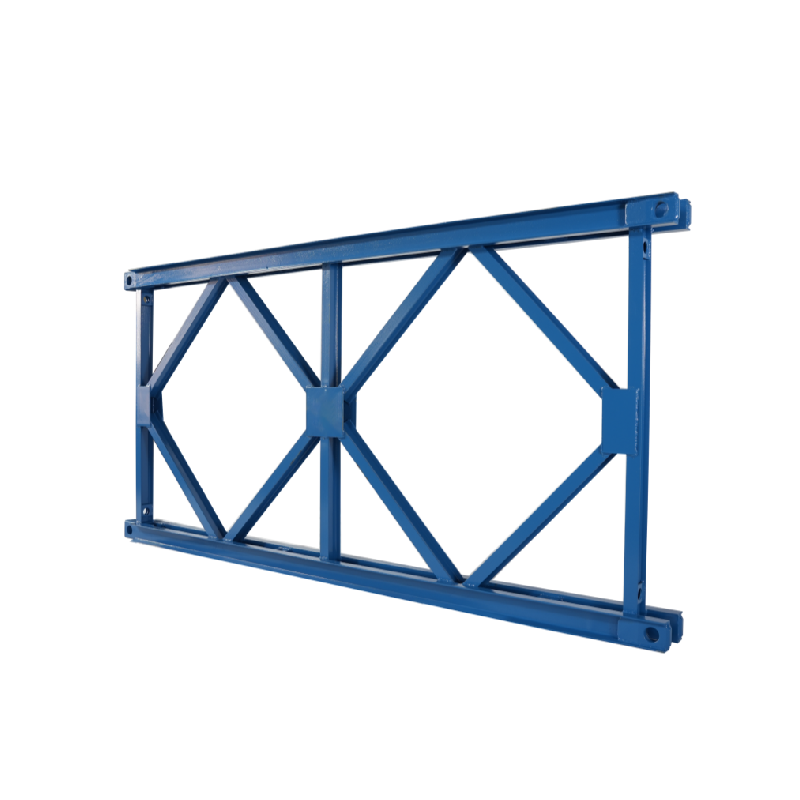

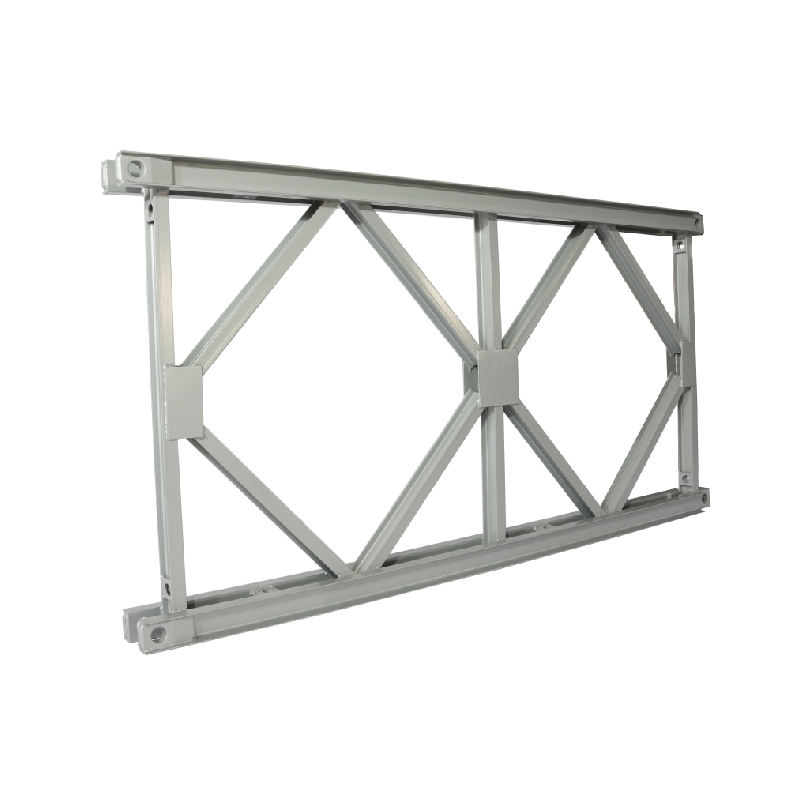

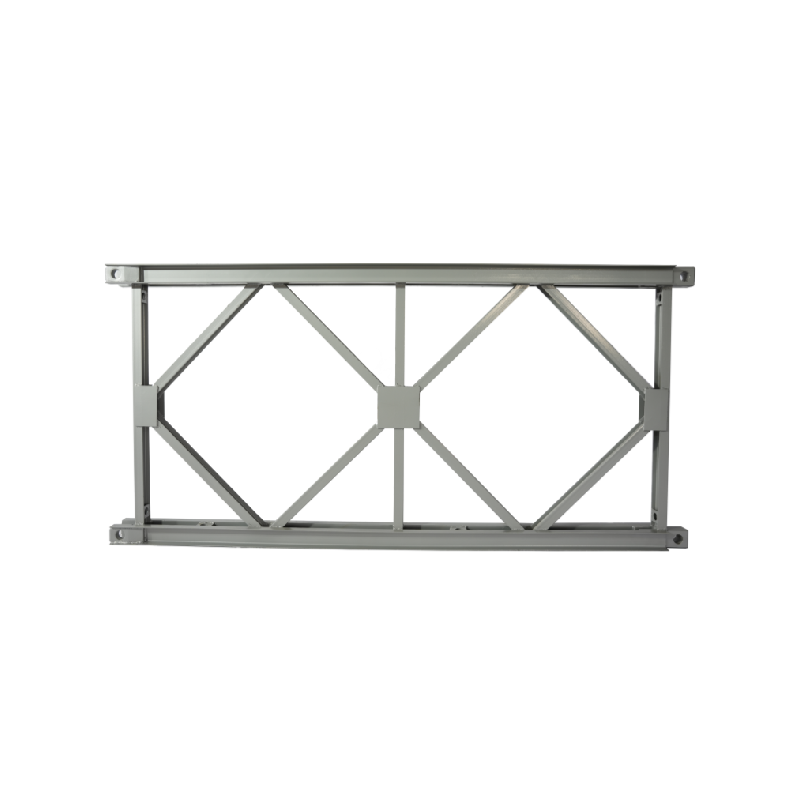

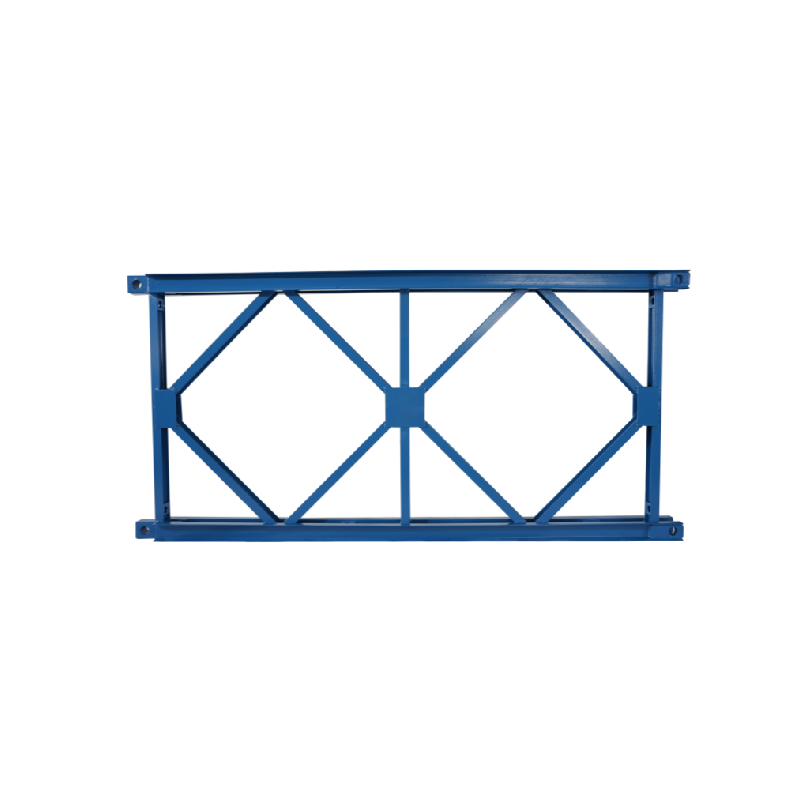

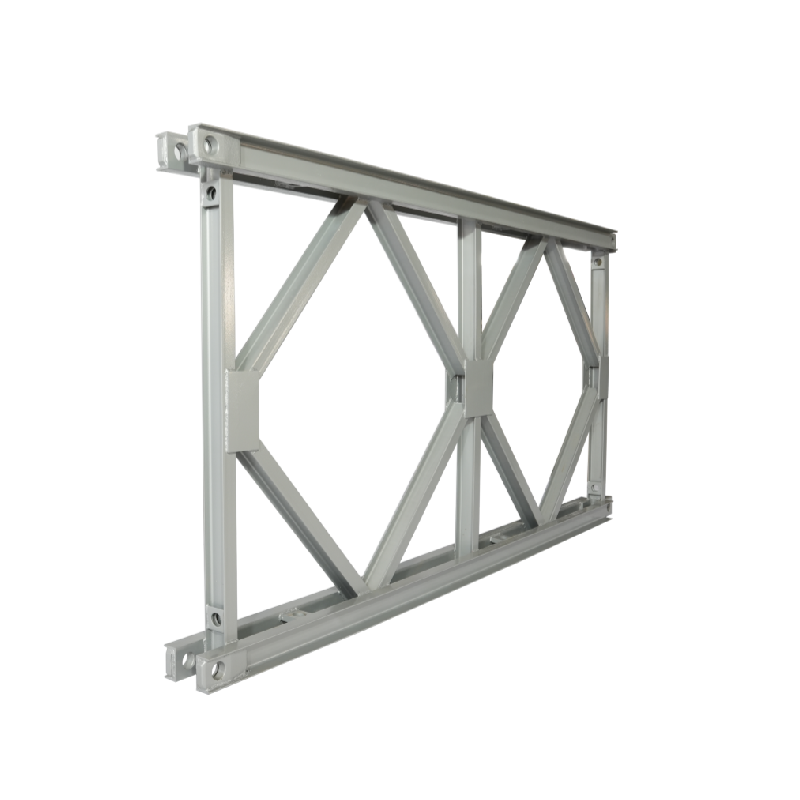

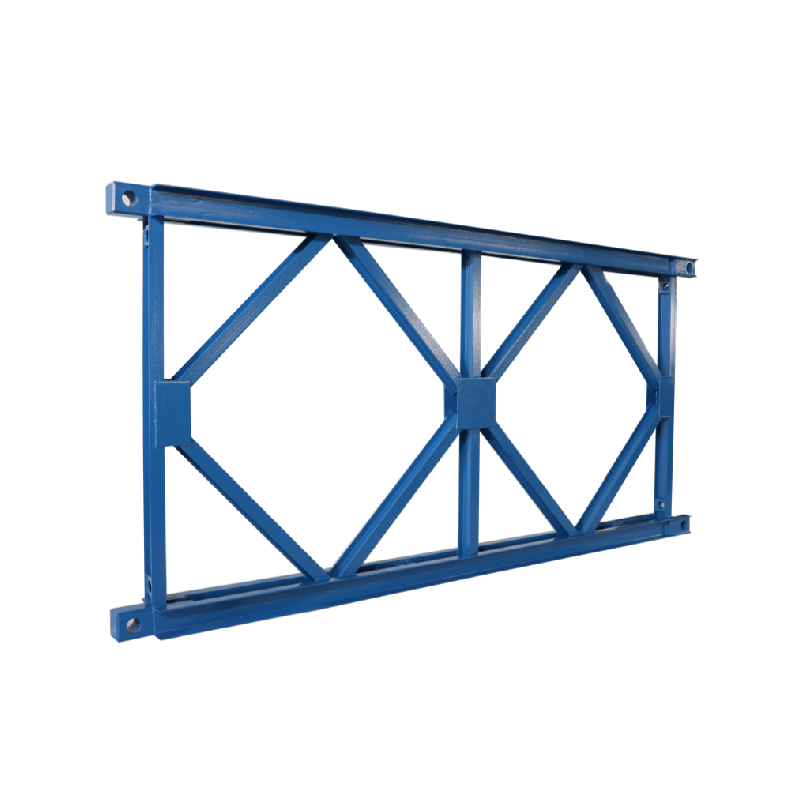

SJ-321 Modular Bailey Bridge for Quick Assembly and High Load Capacity

Product Overview

As a premier manufacturer and direct supplier of structural steel solutions, we present the SJ-321 Modular Bailey Bridge. Engineered for rapid deployment and robust load-bearing, this prefabricated system is the ultimate choice for large-scale infrastructure and emergency access.

• Direct manufacturer sourcing for optimal project cost-efficiency.

• Modular components for rapid, machinery-light on-site assembly.

• High-strength steel construction safely supporting up to 30 tons.

• Customizable span configurations for diverse topographical challenges.

When infrastructure demands immediate, uncompromised access across challenging terrains, the SJ-321 Modular Bailey Bridge delivers unparalleled structural integrity. Forged from premium Q355B and Q235B steel, the tactile robustness of each precision-engineered panel speaks to its enduring resilience. The cold, rigid steel framework is meticulously treated with advanced anti-corrosion coatings, ensuring a resilient barrier against the harsh, biting moisture of river crossings and the abrasive dust of mining environments. Every interlocking pin and heavy-duty transom is designed to distribute weight flawlessly, eliminating the structural fatigue commonly associated with temporary crossings.

Beyond its imposing physical presence, this bridge system fundamentally transforms project timelines. Instead of enduring weeks of foundational delays, engineering teams can witness a fully functional, high-capacity crossing emerge in a matter of hours. The satisfying metallic clank of the 30CrMnTi alloy pins locking into place signifies a secure, fail-safe connection that easily bears the relentless pounding of 30-ton heavy machinery. By choosing this prefabricated marvel, procurement directors and project managers secure a reusable, high-yield asset that continuously mitigates downtime and accelerates operational momentum across multiple sites.

Technical Parameters

To ensure absolute precision in your engineering calculations and procurement planning, the following table details the exact technical parameters, dimensions, weights, and material grades of the SJ-321 Modular Bailey Bridge components. These standardized metrics guarantee seamless integration and reliable load distribution for your most demanding projects.

Key Features & Highlights

Engineered to resolve the most critical bottlenecks in civil construction and emergency response, this modular bridging system offers a strategic advantage. It transforms impassable geographical barriers into secure, high-traffic corridors with unprecedented speed and reliability.

• Accelerated Deployment: The standardized modular design eliminates the need for complex on-site fabrication. A single span can be fully erected in mere hours, drastically reducing project downtime and labor expenditures.

• Exceptional Structural Rigidity: Constructed from meticulously selected high-strength steel, the framework resists torsion and bending under severe dynamic loads, providing a stable platform for continuous heavy equipment transit.

• Long-Term Asset Reusability: Designed for multiple lifecycles, the bridge can be easily dismantled, transported, and reassembled at new project sites, delivering an outstanding return on investment for large-scale infrastructure developers.

• Minimal Maintenance Requirements: The robust anti-corrosion surface treatment defends against oxidation and environmental degradation, ensuring the bridge remains fully operational with only basic routine visual inspections.

Comprehensive Engineering & Application Dimensions

Understanding the multifaceted demands of modern infrastructure development, we have engineered this bridging solution to excel across all critical performance metrics. From load-bearing superiority to comprehensive technical support, every dimension is optimized for your operational success.

Core Parameters & Load Capacity

Safety and throughput capacity are the paramount concerns for any heavy-duty crossing. The SJ-321 system is strictly engineered to accommodate a maximum load capacity of up to 30 tons, easily supporting the passage of fully loaded dump trucks, excavators, and emergency response fleets. Its flexible span configuration allows for single-row, double-row, or reinforced setups, ensuring that the structural framework precisely matches the specific rigid load requirements of your site without unnecessary over-engineering.

Material Standards & Durability

The longevity of temporary and permanent infrastructure relies heavily on the metallurgical quality of its components. We utilize premium Q355B high-strength steel for the main structural elements and Q235B for secondary supports, ensuring exceptional tensile strength. The critical load-bearing connections utilize 30CrMnTi high-strength alloy steel pins, providing immense shear resistance. Coupled with a professional anti-corrosion surface treatment, the tactile, weather-resistant finish guarantees a prolonged service life even when exposed to corrosive wetlands, humid river valleys, or abrasive industrial zones.

Modular Design & Assembly Efficiency

In the realm of large-scale development, time is inextricably linked to cost. The genius of the SJ-321 lies in its highly interchangeable, standardized components. The completely modular architecture relies on secure pin and bolt connections (utilizing Carbon Steel 45), entirely eliminating the need for time-consuming, weather-dependent on-site welding. This allows construction crews to utilize cantilever push-out methods for rapid erection. A dedicated team can bridge significant gaps in a fraction of the time required for conventional structures, drastically lowering manual labor costs and accelerating overall project delivery.

Scenario Adaptability & Terrain Application

Geographical unpredictability should never stall your operational progress. This prefabricated steel bridge exhibits extraordinary adaptability across diverse topographies. Whether facilitating emergency disaster relief over washed-out roads, providing temporary access for urban municipal upgrades, or establishing reliable heavy-haul routes in remote mining sectors, the system performs flawlessly. A prime example of its robust capability is its deployment in the Meizhou Bay Cross-Sea Bridge project, where it provided a steadfast steel trestle and platform over expansive, muddy tidal zones during peak pile foundation construction.

Factory Strength & Quality Control

Securing materials from a direct, reputable manufacturer is crucial for mitigating supply chain risks. Operating from our advanced production base in Zhenjiang, Jiangsu, we maintain absolute control over the manufacturing process. Every component is subjected to rigorous quality assurance protocols, backed by our ISO9001 certification. We provide comprehensive material certificates, factory test reports, and quality compliance documentation, ensuring that every piece of steel delivered to your site meets the highest national and international engineering standards.

End-to-End Engineering Support

Implementing structural solutions requires more than just delivering steel; it requires comprehensive technical backing. We eliminate the complexities of installation by providing a complete service lifecycle. Our engineering team offers free structural calculations and custom drawing designs tailored to your specific topographical challenges. During execution, we supply detailed assembly drawings, comprehensive manuals, and video tutorials. Should your project require it, we also offer expert on-site supervision and a responsive 24-hour after-sales service network to ensure a flawless, secure erection process.

Why Choose Us

Partnering with a proven manufacturer ensures that your infrastructure investments yield maximum reliability and operational efficiency. We stand apart in the industry through our unwavering commitment to engineering excellence and client-centric service models.

• Direct Manufacturing Advantage: By bypassing intermediaries, we provide highly competitive pricing structures and streamlined communication directly from our production floors to your project sites.

• Bespoke Engineering Solutions: We do not just supply standard parts; our technical experts provide complimentary structural calculations and non-standard customization to fit unique site constraints perfectly.

• Uncompromising Quality Assurance: From raw steel procurement to the final anti-corrosion coating, every step is monitored under strict ISO9001 protocols, guaranteeing zero-defect deliveries.

• Comprehensive Lifecycle Support: Our relationship extends far beyond the delivery dock. With 24/7 technical assistance, detailed procedural guides, and available on-site supervision, we ensure your bridge is erected safely and efficiently.

Frequently Asked Questions (FAQ)

To further assist your engineering and procurement teams in their evaluation process, we have compiled detailed responses to the most common inquiries regarding the capabilities and deployment of our modular bridging systems.

• What is the maximum load capacity and how is it achieved?
  The system is strictly engineered to safely support up to 30 tons. This high load capacity is achieved through the use of premium Q355B high-strength steel panels and reinforced chords, coupled with 30CrMnTi alloy steel pins that provide exceptional shear strength at critical connection points.

• How does the modular design impact the installation timeline?
  The standardized, interchangeable components utilize a secure pin-and-bolt connection system, completely eliminating the need for on-site welding. This allows an experienced construction team to assemble and launch a single span in a matter of hours, significantly reducing project downtime.

• Can the bridge withstand highly corrosive environments?
  Yes. Every steel component undergoes a rigorous, professional anti-corrosion surface treatment. This protective barrier ensures long-term durability and structural integrity, even when deployed in humid river valleys, coastal wetlands, or abrasive mining sites.

• Do you provide structural calculations for custom spans?
  Absolutely. As a direct manufacturer, our in-house engineering team provides complimentary structural calculations, detailed CAD drawings, and non-standard customization services to ensure the bridge perfectly aligns with your specific topographical and load requirements.

• What level of installation support is provided upon delivery?
  We provide comprehensive end-to-end support. Each delivery includes detailed assembly drawings, installation manuals, and video tutorials. Furthermore, we offer 24-hour after-sales service and can dispatch experienced engineers for on-site supervision to guarantee a safe and accurate erection process.

First of all, an experienced construction team should be assigned to undertake the erection of the bridge.

We have studied the drawings of the erection site and surrounding area, and conclude that the installation site is spacious and flat,so we recommend the installation procedure as follows:

1. Assemble the bilateral bailey panels to two whole construction, including the lower chord reinforced、horizontal bracing、vertical bracing、male and female end post. every assembling unit is mainly composed by 27 pieces of bailey panel

   Meanwhile, the bridge bearings are installed on the abutment. note that：check the length of the single whole bailey truss and the distance between the bolts of the two side of the river, if not fit , adjust the bolts.

2. Use suitable lorry-mounted crane to lift the two assembling truss unit and place them on the two side abutments.the single combined truss unit is weight about 11tons and 27.4 m length.

3. Install the transom, please refer the video.for the weight of one piece of transom is about not more than 1 ton，so it need a small crane. In order to increase the stability of the structure during the erection, the nearest transom and the farthest transom, as far as possible according to the capacity of the crane, should be installed first,  then for other transoms between them.

4. Install the sway bracing，then pave the first row in width direction of bridge decking on the transoms, including the side and middle bridge decking.

   Meanwhile, install the upper chord reinforced to strengthen the structure,then the crane could move onto the bridge decking to install the following ahead transoms,similar ways like upper procedure to be perform.

5. The rest can be done in the same manner.

6. Final, install the upper chord reinforced、curb、gap plate、handrail、 connective plate and handrail column.

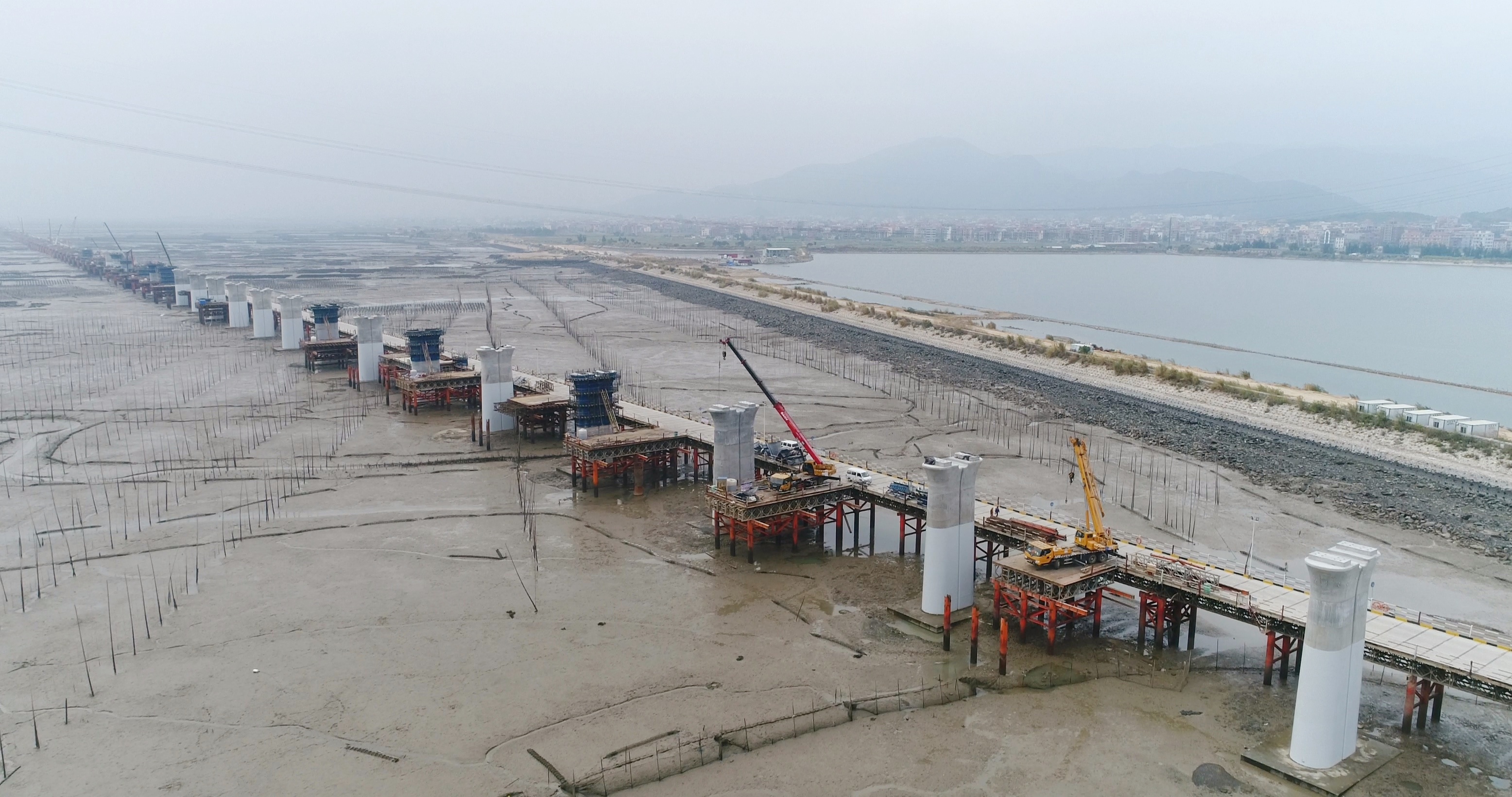

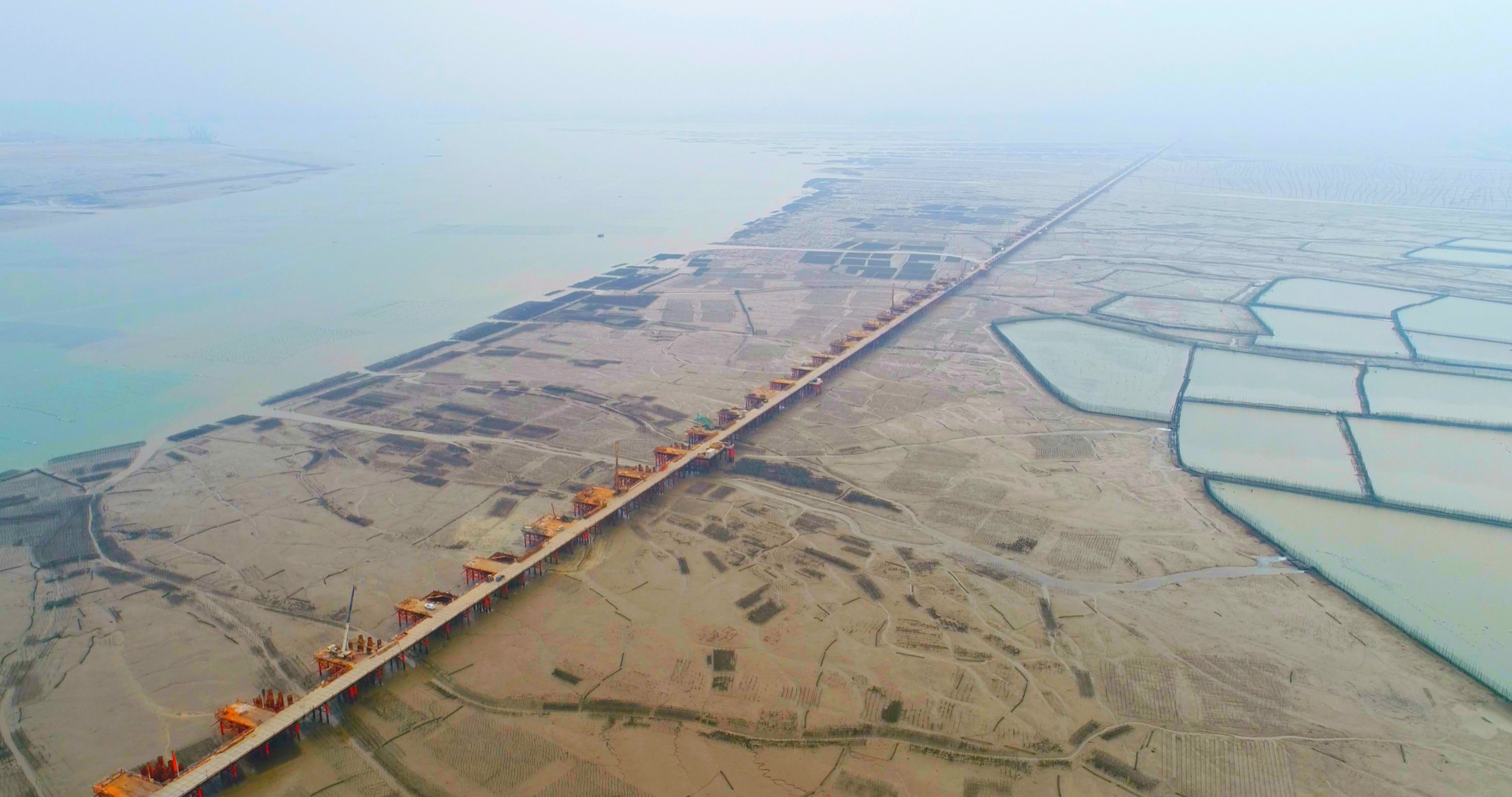

Steel Trestle and Steel Platform of Meizhou Bay Cross-Sea Bridge (Fuzhou-Xiamen High-Speed Railway)

2018.06: Large-scale construction of the trestle began.

2019.03: 7.33 km of offshore trestle had been completed, along with 59 drilling platforms; full-scale pile foundation construction commenced.

2019–2020: Peak construction period for pile foundations, pile caps, and pier shafts; the steel platform remained in use throughout.

2021.11.13: The main bridge was closed (connected), and the substructure was essentially completed.
