As a premier manufacturer and direct supplier of advanced infrastructure solutions, we present the 450 Support Truss for Bailey Bridge Construction. Engineered for maximum load-bearing capacity and rapid deployment, this structural component ensures uncompromised stability across diverse terrains and demanding environments.
Direct source manufacturing ensuring stringent quality control and cost efficiency.
Constructed from high-strength structural steel for superior durability.
Modular, standardized design facilitating rapid, cost-effective on-site assembly.
Comprehensive engineering support, including customized structural calculations.
The 450 Support Truss stands as the unyielding backbone of resilient temporary and permanent bridge networks worldwide. When you run your hand along the meticulously welded joints, you can feel the cold, solid strength of premium structural steel, finished with a flawless hot-dip galvanized coating that promises decades of defiance against harsh, corrosive elements. The reassuring, heavy clank of precision-engineered pins locking smoothly into place during assembly speaks volumes about the exacting tolerances achieved on our factory floor. Designed specifically for project managers and procurement specialists who cannot afford delays, this truss system transforms weeks of traditional construction into mere days of rapid deployment.
By eliminating the constant need for heavy, specialized machinery for every single step, it dramatically reduces on-site labor costs and logistical headaches. Whether spanning a rushing river for an emergency rescue route or establishing a heavy-duty highway bypass to keep commerce flowing, the 450 Support Truss delivers immediate, unshakeable structural integrity. The visual perfection of the robotic welds and the robust scent of fresh anti-corrosion coatings provide immediate assurance of its premium craftsmanship. It ensures that critical transportation arteries remain open and secure under the most demanding load conditions, ultimately protecting your project timeline and bottom line.

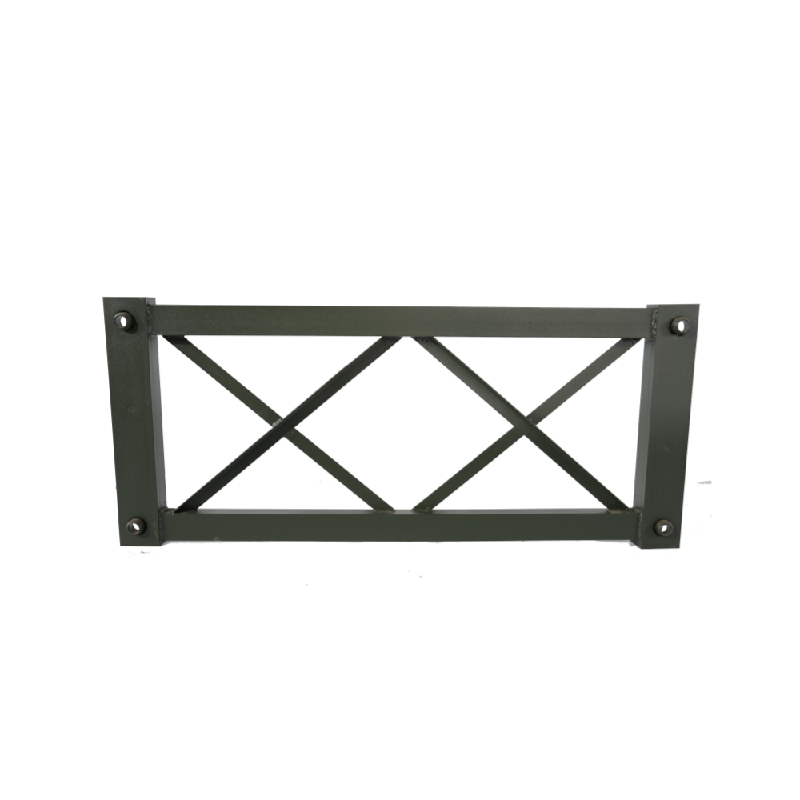

Product Name | 450 Support Truss For Bailey Bridge Construction |
|---|---|
Manufacturer Type | Direct Source Factory (Zhenjiang, Jiangsu, China) |
Core Material | High-strength structural steel (Q345B / Q355B / Q235B) |
Surface Treatment | Hot-dip galvanizing / Anti-corrosion coating |
Customization | Supported (Free structural calculation, drawings, and non-standard customization) |
Certifications | ISO9001, Material certificates, test reports, quality certificates (Compliant with DIN, JIS, GB, BS, ASTM, AISI) |
Single Combined Truss Unit Weight | Approximately 11 tons |
Single Combined Truss Unit Length | 27.4 meters |
Transom Single Piece Weight | ≤ 1 ton |
Installation Support | Full set of installation drawings, manual, video tutorial, on-site supervision, and remote guidance |
After-sales Service | 24-hour response, bridge maintenance & dismantling guidance |
Application Scenarios | Temporary bridges, over-water bridges, highway bridges, pedestrian overpasses, emergency rescue bridges |
Transport Packaging | Standard container transport |
The engineering philosophy behind our support truss focuses strictly on minimizing on-site friction while maximizing load-bearing efficiency. Every component is crafted to solve the real-world challenges faced by construction crews, ensuring that your infrastructure projects are completed ahead of schedule and under budget.
Frictionless Assembly: Precision-machined pinholes and standardized connectors eliminate the need for on-site modifications, allowing pieces to slide together with satisfying ease and secure firmly.
Extreme Weather Readiness: The specialized surface treatments repel moisture and resist the abrasive forces of wind-blown sand, ensuring the structural integrity remains pristine even in coastal or desert environments.
Optimized Logistics: By keeping individual component weights manageable, we drastically reduce the dependency on massive, expensive heavy-lifting equipment, cutting down transportation and rental costs.
Versatile Terrain Adaptation: Whether spanning a deep ravine or a wide, shallow riverbed, the modular nature of the truss allows for seamless length and width adjustments on the fly.
Uncompromised Safety Margins: Engineered to exceed standard load requirements, providing total peace of mind when heavy commercial vehicles or emergency equipment traverse the span.
Exposure to relentless moisture, road salts, and industrial chemicals demands a metallurgical defense system that never sleeps. Our support trusses are forged from premium high-strength, low-alloy structural steel, specifically grades like Q345B and Q355B. This exceptional core material provides the immense tensile strength required to support heavy dynamic loads without yielding or warping over time.
To shield this robust core, we employ a rigorous hot-dip galvanizing or inorganic zinc-rich anti-corrosion coating process. The steel is submerged into molten zinc, creating a metallurgical bond that seals every microscopic crevice. This results in a sleek, visually flawless finish that acts as an impenetrable barrier against rust and decay. This dual-layer approach ensures high load-bearing capacity in the most extreme, hostile environments, dramatically extending the operational lifespan of both temporary and permanent bridge installations, and drastically reducing your long-term maintenance expenditures.
Utilizes premium Q345B/Q355B high-strength structural steel for maximum load endurance.
Advanced hot-dip galvanizing creates an impenetrable, long-lasting rust barrier.
Inorganic zinc-rich coatings available for specialized environmental resistance.
Significantly extends the lifecycle of the infrastructure, lowering total cost of ownership.
Installation Method Recommendation
Time is the most expensive commodity on any construction site. Delays cost money, disrupt supply chains, and extend road closures. Our 450 Support Truss tackles this pain point directly through an intelligent, highly standardized modular design. Pre-fabricated in standard 3-meter sections, the components are engineered to be compact and optimally weighted, allowing for effortless transportation via standard commercial trucks rather than specialized oversized load carriers.
Once on site, the magic of our modular system truly shines. With single transom pieces weighing no more than 1 ton, the assembly process requires only small-scale cranes or, in certain scenarios, manual assistance. We empower your crews with comprehensive blueprints, step-by-step video tutorials, and expert remote or on-site guidance. This streamlined workflow means a fully functional, heavy-duty bridge can be erected and opened to traffic in a matter of days, not months, slashing labor costs and minimizing regional disruption.
Standardized 3-meter prefabricated sections for predictable, rapid assembly.
Optimized weight distribution (transoms ≤ 1 ton) eliminates the need for massive cranes.
Easily transportable in standard shipping containers and flatbed trucks.
Reduces project completion times from months to mere days.
Supported by exhaustive visual and documented installation guides.
In the realm of civil engineering and critical infrastructure, trust cannot be assumed; it must be rigorously verified. Our manufacturing facility operates under the strict disciplines of ISO9001, ISO14001, and ISO45001 management systems, ensuring that every phase of production—from raw material sourcing to final inspection—is flawlessly executed. We welcome and consistently pass deep factory audits from internationally recognized third-party agencies like SGS and BV.
Every single truss that leaves our production line complies strictly with global engineering standards, including ASTM, BS, DIN, and JIS. We do not just promise quality; we document it. Every shipment is accompanied by comprehensive material certificates, physical test reports, and quality assurance declarations. This obsessive attention to compliance provides procurement teams and government contractors with absolute legal and structural security, ensuring your projects pass municipal inspections on the very first attempt.
Triple-certified facility: ISO9001, ISO14001, and ISO45001.
Rigorously audited and verified by independent global agencies like SGS and BV.
Strict adherence to international metallurgical and structural standards (ASTM, BS, DIN).
Full traceability with provided material certificates and laboratory test reports.
No two topographies are identical, and off-the-shelf solutions often fall dangerously short when confronting unpredictable natural landscapes. We house a dedicated team of veteran structural engineers who specialize in adapting our truss systems to your exact geographical and functional requirements. We do not just sell components; we provide comprehensive engineering partnerships, offering free, highly detailed bridge structural calculations and CAD design services.
Whether your project demands a specific span length, unique single or double-lane configurations, or compliance with rigorous load ratings like AASHTO HL-93 or HS20-44, our team meticulously tailors the design to fit. This bespoke approach ensures that the bridge will integrate flawlessly with mountainous ravines, fast-flowing rivers, or complex urban bypass routes, delivering a custom-fit infrastructure solution without the exorbitant costs typically associated with bespoke engineering.
Complimentary, highly accurate structural calculations and CAD drafting.
Customizable for varying span lengths and single/double lane traffic flows.
Engineered to meet specific heavy-duty load ratings (e.g., AASHTO HL-93).
Perfectly adaptable to complex terrains, including mountains and river crossings.
Expert engineering team available for complex problem-solving.
Securing a reliable, high-volume supply chain is critical for large-scale infrastructure rollouts and emergency disaster relief efforts. As a formidable source manufacturing factory located in Zhenjiang, Jiangsu, we command a massive proprietary production base. Our floors are equipped with the latest in heavy industrial technology, including CNC precision machining centers, laser cutting arrays, and robotic automated welding stations, enabling an annual production capacity exceeding 50,000 tons.
Because you are sourcing directly from the factory floor, there are zero intermediary markups. This direct pipeline guarantees highly competitive pricing, allowing you to allocate your budget more effectively across your project. Furthermore, our immense production capabilities and strategic raw material reserves mean we can guarantee rapid manufacturing and expedited delivery, which is absolutely vital when responding to urgent government tenders or emergency rescue bridge deployments.
Massive annual production capacity exceeding 50,000 tons of structural steel.
State-of-the-art CNC, laser cutting, and robotic welding technologies ensure zero defects.
Direct-from-factory pricing eliminates intermediary costs and protects your budget.
Rapid manufacturing turnaround tailored for urgent and emergency infrastructure projects.
A bridge is a decades-long investment, and our commitment to your project extends far beyond the moment the steel is delivered. We provide a comprehensive, closed-loop lifecycle service that guarantees your infrastructure remains safe and operational year after year. Our dedicated support team offers a 24/7 rapid response system, ready to assist with any technical inquiries or urgent needs.
From the initial blueprint phase and active on-site installation supervision to long-term maintenance protocols and eventual safe dismantling guidance, we are with you at every step. Should you ever require component replacements due to unforeseen impacts or planned expansions, our vast inventory of standardized parts is fully stocked and ready for immediate dispatch. This unwavering support ensures that your operations experience zero unnecessary downtime and your investment is protected for its entire lifespan.
24/7 all-weather technical response and support team.
End-to-end service: from design and erection to maintenance and dismantling.
Massive standing inventory of standardized replacement parts for immediate shipping.
On-site and remote expert supervision ensures long-term structural health.
Selecting the right manufacturing partner is the most critical decision in any infrastructure project. We bring decades of specialized metallurgical and structural expertise directly to your site, ensuring that every truss, pin, and panel performs flawlessly under pressure. We understand the high stakes involved in bridge construction, where safety, speed, and budget are non-negotiable.
Our facility combines the raw output power of a massive industrial complex with the precision engineering of a boutique design firm. By maintaining total control over the manufacturing process, we eliminate the variables that cause project delays and budget overruns. When you choose our factory, you are securing a reliable, transparent, and highly capable extension of your own project management team.
Decades of proven expertise in heavy structural steel and bridge manufacturing.
Total quality control from raw material melting to final anti-corrosion coating.
Transparent, direct communication with the engineers designing your bridge.
A proven global track record of successful deployments in harsh environments.
Unmatched speed of delivery combined with uncompromising safety standards.
Are you a factory or trading company?
We are a direct manufacturer based in Zhenjiang, Jiangsu, with our own production base and lines specialized in bailey bridges and parts.
What are your main products?
SJ-200 Steel Bridge, SJ-321 Bailey Bridge, bailey panel, chords, frames, deck panels, pins, bolts and full set steel components.
Can you supply customize design?
Yes, we provide free structure calculation, drawings and customization.
What certifications and quality do you have?
We have obtained ISO9001 certification; products meet national standards. Material certificates, test reports and quality certificates are available.
Is there any installation guide?
Drawings, manual, video provided; on-site supervision available. 24h after-sales service.
What is the recommended installation procedure for the bridge?
First of all, an experienced construction team should be assigned to undertake the erection of the bridge. We have studied the drawings of the erection site and surrounding area, and conclude that the installation site is spacious and flat, so we recommend the installation procedure as follows:
1. Assemble the bilateral bailey panels to two whole construction, including the lower chord reinforced, horizontal bracing, vertical bracing, male and female end post. Every assembling unit is mainly composed by 27 pieces of bailey panel. Meanwhile, the bridge bearings are installed on the abutment. Note that: check the length of the single whole bailey truss and the distance between the bolts of the two side of the river, if not fit, adjust the bolts.
2. Use suitable lorry-mounted crane to lift the two assembling truss unit and place them on the two side abutments. The single combined truss unit is weight about 11tons and 27.4 m length.
3. Install the transom, please refer the video. For the weight of one piece of transom is about not more than 1 ton, so it need a small crane. In order to increase the stability of the structure during the erection, the nearest transom and the farthest transom, as far as possible according to the capacity of the crane, should be installed first, then for other transoms between them.
4. Install the sway bracing, then pave the first row in width direction of bridge decking on the transoms, including the side and middle bridge decking. Meanwhile, install the upper chord reinforced to strengthen the structure, then the crane could move onto the bridge decking to install the following ahead transoms, similar ways like upper procedure to be perform.
5. The rest can be done in the same manner.
6. Final, install the upper chord reinforced, curb, gap plate, handrail, connective plate and handrail column.
