As a premier manufacturer and supplier of heavy-duty infrastructure components, we present the 900 Support Truss For Bailey Bridge Construction. Engineered for maximum load-bearing capacity and rapid deployment, this structural steel framework provides the ultimate solution for complex bridging projects.
Manufactured from premium high-strength structural steel for unmatched durability.
Optimized for rapid on-site assembly, significantly reducing project timelines.
Engineered to deliver superior stability and safety in challenging terrains.
Direct factory supply ensuring significant procurement advantages and cost efficiency.
The 900 Support Truss stands as the robust backbone of modern modular bridge construction, delivering uncompromising strength and architectural precision. When you run your hands along the meticulously welded joints, you can feel the industrial-grade craftsmanship that goes into every single chord and panel. The cold, unyielding touch of the high-strength structural steel is a testament to its exceptional load-bearing capabilities, designed specifically to eliminate structural deflection under immense vehicular or pedestrian weight. Visually, the sleek, uniform geometry of the truss framework reflects advanced engineering, ensuring that every piece aligns with flawless accuracy during erection. This is not merely a steel component; it is a comprehensive solution engineered to overcome the most daunting geographical barriers.
By integrating this heavy-duty truss into your bridging projects, you instantly resolve issues related to structural instability and prolonged construction delays. The precise fabrication minimizes on-site adjustments, allowing construction teams to seamlessly connect panels and transoms without friction or hesitation. Whether spanning a turbulent river or establishing a heavy-load transport route across uneven valleys, this support truss ensures that the final structure remains rigid, secure, and resilient against dynamic forces. The unmistakable metallic resonance when the pins lock into place provides immediate auditory confirmation of a secure, fail-safe connection, giving project managers absolute confidence in the safety and longevity of their infrastructure investments.

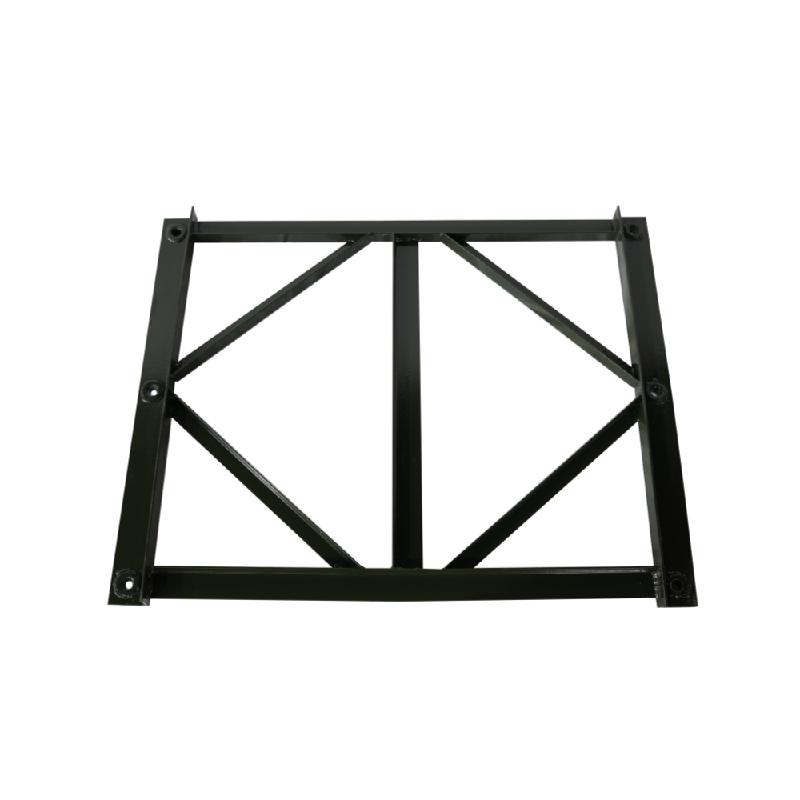

Product Name | 900 Support Truss For Bailey Bridge Construction |
Material | High Strength Structural Steel (e.g., Q345B) |
Surface Treatment | Hot-Dipped Galvanized / Anti-Corrosion Painting |
Certification | ISO9001 (Material certificates, test reports and quality certificates available) |
Customization | Available (Free structure calculation, drawings and customization) |
Single Truss Unit Length | 27.4 m |
Single Truss Unit Weight | Approx. 11 tons |
Transom Weight | ≤ 1 ton |
Installation Support | Drawings, manual, video provided; on-site supervision available |
After-sales Service | 24h online service, Maintenance, Demolition |
Engineered to redefine structural reliability, the 900 Support Truss incorporates advanced architectural mechanics to deliver exceptional performance in the field. Every element is designed to accelerate deployment while maximizing safety margins.
Flawless Modular Integration: The standardized pin-and-bolt connection system allows for seamless interlocking between the bailey panels, eliminating the need for complex on-site welding.
Exceptional Load Distribution: The geometric configuration of the upper and lower chords efficiently disperses heavy dynamic loads, preventing localized stress fractures.
High-Tolerance Manufacturing: Precision-cut components ensure that male and female end posts align perfectly, drastically reducing assembly friction and labor hours.
Enhanced Structural Rigidity: Integrated vertical and horizontal bracing mechanisms prevent lateral swaying, ensuring a stable deck surface even under high-wind conditions or heavy traffic.
Optimized Weight-to-Strength Ratio: Despite its massive load-bearing capacity, the truss design minimizes unnecessary bulk, facilitating easier lifting and positioning with standard lorry-mounted cranes.
By utilizing this advanced truss framework, project developers can confidently execute complex erection sequences, knowing that the foundational geometry will support both the temporary construction loads and the final operational traffic.
The foundation of any enduring infrastructure lies in its metallurgical integrity. We utilize premium high-strength structural steel, such as Q345B, to forge the core framework of the 900 Support Truss. This material selection guarantees exceptional tensile strength and resistance to mechanical fatigue, ensuring the bridge remains steadfast under continuous heavy-duty cycles.
To combat the relentless assault of environmental degradation, each component undergoes a rigorous surface protection protocol.
Hot-Dipped Galvanization: Components are submerged in molten zinc, creating an impenetrable metallurgical bond that seals the steel away from moisture, salt, and oxygen.
Inorganic Zinc-Rich Coating: An alternative heavy-duty painting process that provides active cathodic protection, sacrificing itself to prevent the underlying steel from rusting.
Extreme Environment Resilience: Whether deployed in highly corrosive coastal regions, humid tropical jungles, or freezing alpine passes, the treated surface actively repels oxidation.
Extended Lifespan: This meticulous attention to anti-corrosion detailing drastically reduces the need for frequent maintenance, securing a prolonged operational life and a superior return on investment.
Recognizing that no two geographical challenges are identical, we deliver comprehensive engineering flexibility. Our technical team does not just supply parts; we provide a complete architectural solution tailored to the precise demands of your site.
Complimentary Structural Calculation: Our engineers conduct rigorous load-bearing and stress-distribution analyses at no extra cost, ensuring the proposed configuration is mathematically sound.
Bespoke Drafting Services: We generate detailed CAD drawings customized to your specific span requirements, lane widths, and expected traffic volumes.
International Standard Compliance: Every custom design is meticulously cross-referenced to meet or exceed stringent global design codes, including AASHTO, GB, DIN, and BS standards.
Terrain-Specific Adaptability: Whether the project requires a reinforced lower chord for a longer unsupported span or specialized abutment bearings for uneven riverbanks, the truss system can be modified to conquer the topography.
This proactive approach to engineering design empowers procurement teams and project managers to acquire a bridging system that perfectly aligns with their unique operational parameters, eliminating the risks associated with one-size-fits-all solutions.
Installation Method Recommendation
Time is a critical resource in infrastructure development. The 900 Support Truss is ingeniously designed around a standardized, modular prefabrication concept that dramatically accelerates the erection process.
The entire system is optimized for rapid deployment, allowing construction teams to transition from site preparation to a fully functional bridge in record time.
Rapid Crane Hoisting: With single combined truss units weighing approximately 11 tons and measuring 27.4 meters in length, standard lorry-mounted cranes can easily lift and position the bilateral frameworks onto the abutments.
Cantilever Assembly Support: For sites where traditional crane access is restricted, the modular panels support progressive cantilever launching techniques.
Lightweight Transoms: Individual transoms weigh no more than 1 ton, permitting the use of smaller, more agile lifting equipment to secure the cross-sections.
Comprehensive Guidance: We provide exhaustive installation manuals, detailed video tutorials, and precise assembly drawings to guide the construction crew step-by-step.
On-Site Supervision: For complex deployments, our experienced engineers are available for on-site supervision, ensuring every pin and sway brace is installed with absolute precision.
Structural failure is not an option. Therefore, our manufacturing facility operates under the strictest quality assurance protocols, ensuring that every steel component leaving our production line is flawless.
Integrated Management Systems: Our production base is fully certified under ISO9001, ISO14001, and ISO45001, reflecting our commitment to quality, environmental responsibility, and occupational health.
Rigorous Material Testing: Before fabrication begins, raw steel batches are subjected to intense metallurgical testing to verify tensile strength and chemical composition.
Weld Integrity Inspection: Advanced non-destructive testing (NDT), including ultrasonic and radiographic inspections, is utilized to guarantee that every weld seam is free from internal defects.
Comprehensive Documentation: We supply absolute transparency with every delivery. Full material certificates, detailed test reports, and official quality certificates are readily available for your compliance records.
This uncompromising dedication to quality control guarantees that the truss framework will safely support the intended loads, providing absolute peace of mind to project stakeholders and ensuring the safety of all end-users.
The true value of the 900 Support Truss lies in its incredible operational versatility. It is not constrained to a single type of project but serves as a multi-functional asset across various demanding sectors.
The ability to dismantle, transport, and reassemble the components makes this system a highly sustainable and economically advantageous investment.
Emergency & Disaster Relief: When natural disasters wash away permanent infrastructure, this truss system can be deployed within hours to re-establish vital supply lines and evacuation routes.
Heavy-Duty Mining Access: Engineered to withstand the punishing weight of loaded dump trucks, it provides reliable river crossings and valley spans for remote extraction sites.
Temporary Construction Bridges: Facilitates the movement of heavy earth-moving equipment and materials across waterways while permanent structures are being built.
Pedestrian & Floating Bridges: The modular nature allows for narrower configurations suitable for pedestrian overpasses or integration with pontoons for stable water crossings.
High Return on Investment: The heavy-duty components are designed for repeated use across multiple projects, drastically lowering the long-term capital expenditure for major construction firms.
Delivering massive steel structures across the globe requires meticulous logistical planning. We have optimized the physical dimensions of every truss component to ensure seamless integration with international freight networks.
Container-Optimized Sizing: The lengths and widths of the bailey panels, chords, and transoms are specifically engineered to fit perfectly within standard 20-foot and 40-foot shipping containers, maximizing space utilization.
High-Strength Lashing: To prevent shifting and mechanical damage during turbulent sea voyages or rough overland transit, all components are secured using heavy-duty steel banding and reinforced dunnage.
Categorized Packing: Pins, bolts, and smaller connective plates are systematically sorted, categorized, and sealed in robust wooden crates, preventing loss and accelerating inventory checks upon arrival.
Zero-Loss Delivery: Our rigorous packing protocols guarantee that the protective anti-corrosion coatings remain unscratched and the structural integrity remains uncompromised from our factory floor to your remote installation site.
This strategic approach to packaging ensures that your project timeline is never derailed by damaged goods or missing hardware upon container offloading.
Our commitment to your project extends far beyond the point of delivery. We provide a comprehensive, full-lifecycle support system to ensure your infrastructure remains safe and operational.
Navigating the complexities of heavy bridge maintenance and eventual dismantling requires expert guidance, and our dedicated technical team is always on standby.
24/7 Rapid Response: Our engineering support desk operates around the clock, ready to provide immediate technical consultations and troubleshooting advice whenever you need it.
Routine Maintenance Guidelines: We supply detailed schedules and procedures for inspecting bolt torque, checking pin alignments, and assessing surface coatings to maximize the bridge's lifespan.
Demolition & Disassembly Support: When a temporary bridge has fulfilled its purpose, we provide expert instructions on how to safely dismantle the truss framework without damaging the reusable components.
Long-Term Warranty: Backed by stringent quality control, our products come with robust long-term guarantees, ensuring that any rare manufacturing defects are swiftly addressed.
Selecting the right manufacturing partner for critical infrastructure components is a decision that impacts the safety, budget, and timeline of your entire operation. We stand apart in the industry through our unwavering dedication to engineering excellence and client success.
Direct Manufacturing Power: Operating directly from our expansive production base in Zhenjiang, Jiangsu, we eliminate intermediary markups, offering you premium steel structures at highly competitive rates.
Decades of Specialized Expertise: Our singular focus on bailey bridges and heavy-duty steel components means we possess a depth of knowledge that generalist fabricators simply cannot match.
End-to-End Solution Provider: From the initial CAD drafting and structural calculations to global logistics and on-site supervision, we handle every phase of the supply chain.
Proven Global Track Record: Our truss systems have been successfully deployed in some of the most challenging environments worldwide, consistently meeting the rigorous demands of international project developers.
Uncompromising Safety Standards: We never cut corners on material quality or testing. When you source from us, you are investing in absolute structural certainty.
We are a direct manufacturer based in Zhenjiang, Jiangsu, with our own production base and lines specialized in bailey bridges and parts.
SJ-200 Steel Bridge,SJ-321 Bailey Bridge, bailey panel, chords, frames, deck panels, pins, bolts and full set steel components.
Yes, we provide free structure calculation, drawings and customization.
We have obtained ISO9001 certification; products meet national standards. Material certificates, test reports and quality certificates are available.
Drawings, manual, video provided; on-site supervision available. 24h after-sales service.
We have studied the drawings of the erection site and surrounding area, and conclude that the installation site is spacious and flat,so we recommend the installation procedure as follows:
1. Assemble the bilateral bailey panels to two whole construction, including the lower chord reinforced、horizontal bracing、vertical bracing、male and female end post. every assembling unit is mainly composed by 27 pieces of bailey panel
Meanwhile, the bridge bearings are installed on the abutment. note that：check the length of the single whole bailey truss and the distance between the bolts of the two side of the river, if not fit , adjust the bolts.
2. Use suitable lorry-mounted crane to lift the two assembling truss unit and place them on the two side abutments.the single combined truss unit is weight about 11tons and 27.4 m length.
3. Install the transom, please refer the video.for the weight of one piece of transom is about not more than 1 ton，so it need a small crane. In order to increase the stability of the structure during the erection, the nearest transom and the farthest transom, as far as possible according to the capacity of the crane, should be installed first, then for other transoms between them.
4. Install the sway bracing，then pave the first row in width direction of bridge decking on the transoms, including the side and middle bridge decking.
Meanwhile, install the upper chord reinforced to strengthen the structure,then the crane could move onto the bridge decking to install the following ahead transoms,similar ways like upper procedure to be perform.
5. The rest can be done in the same manner.
6. Final, install the upper chord reinforced、curb、gap plate、handrail、 connective plate and handrail column.
