Product Description
As a premier manufacturer and direct supplier of advanced infrastructure components, we introduce the 200-Vertical Brace for Bailey Bridge Stability and Load Sharing. Engineered for uncompromising structural integrity, this rigid member seamlessly connects side-by-side panels to ensure maximum safety.
Direct manufacturer sourcing for streamlined volume procurement efficiency.
Engineered for high-capacity structural stabilization in demanding environments.
Precision-crafted to eliminate lateral-torsional buckling under heavy loads.

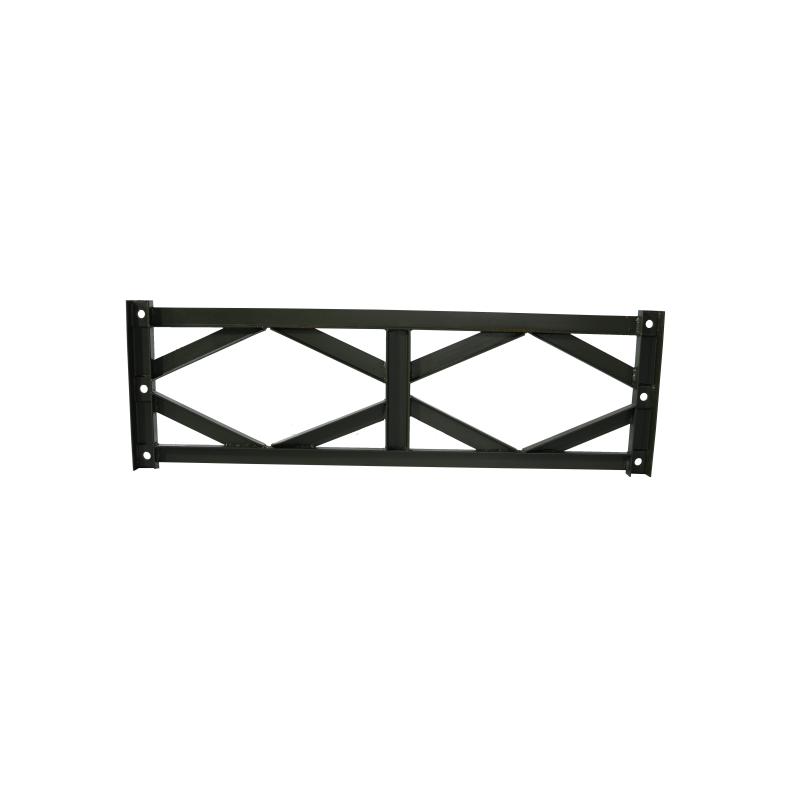

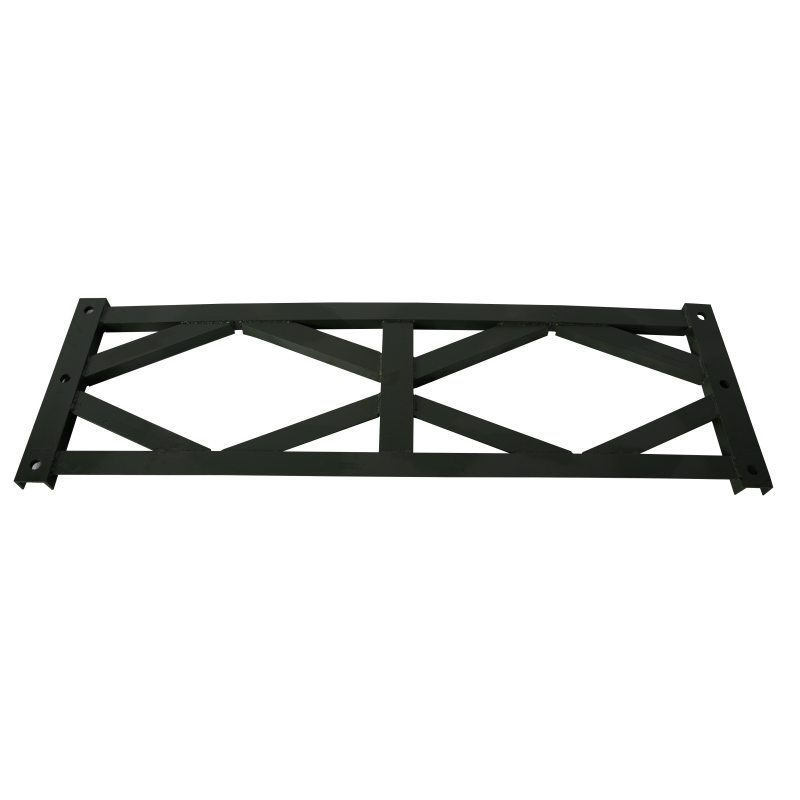

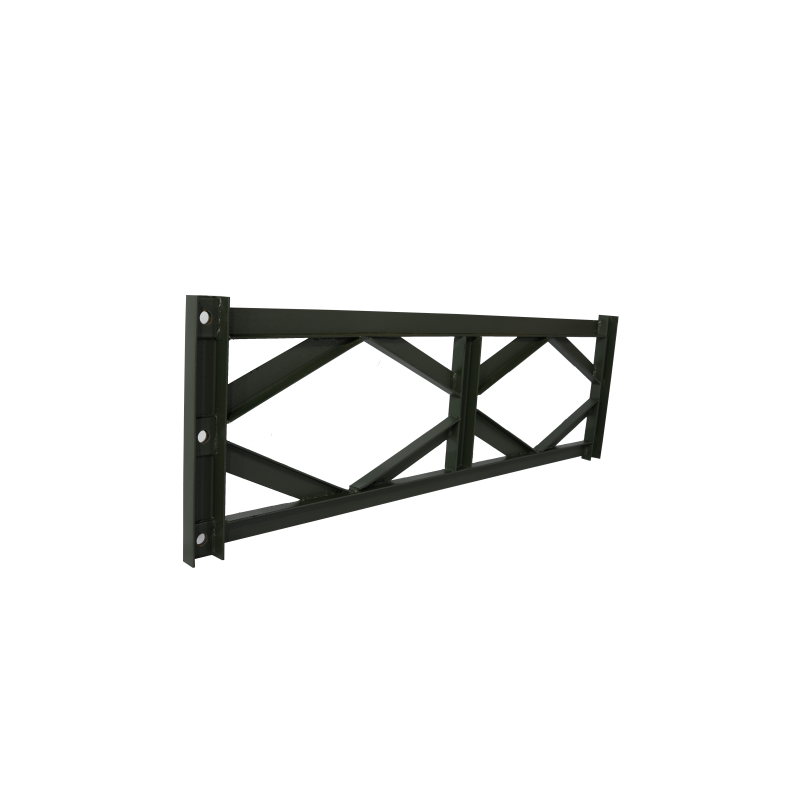

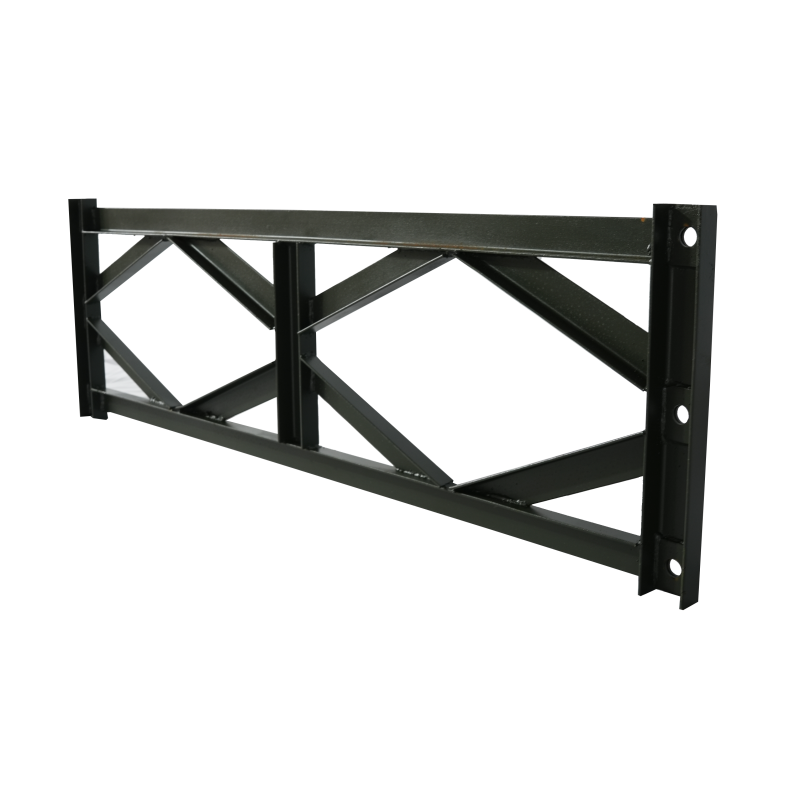

The 200-Vertical Brace serves as the vital architectural spine for complex modular bridging systems, transforming individual trusses into an unyielding, unified box section. When handling the robust weight of this high-strength steel component, you can immediately sense the meticulous craftsmanship—the smooth, flawless finish of the galvanized or painted surface speaks volumes about its resilience against harsh environmental elements. This component is not merely a piece of metal; it is a meticulously engineered structural solution designed to resolve the critical challenge of relative vertical displacement. By locking side-by-side panels securely in the vertical direction, it ensures that every truss shares the immense loads of heavy vehicular traffic and fierce crosswinds equally. The solid, tactile feedback during the bolting process provides construction teams with absolute confidence, knowing that the structural integrity of the bridge is permanently reinforced against eccentric loads. Whether spanning a deep ravine, supporting a heavy-load temporary crossing, or resisting the dynamic forces of a military deployment, this brace guarantees that the entire framework performs with absolute synergy, eliminating the risk of lateral sway and ensuring a safe, enduring passage for decades to come.
Product Name | 200-Vertical Brace for Bailey Bridge |
|---|---|
Material | High-strength Q235B or Q345B steel (Round bar, angle steel, or square tube) |
Panel Spacing (Brace Length) | 450 mm, 900 mm, or 1350 mm |
Installation Spacing | Every 3–6 m along the span (densified at ends and midspan) |
Connection Method | Connection plates or pin holes for bolting to Bailey chord or web nodes |
Verticality Deviation | ≤ 1/200 |
Surface Treatment | Painted or Galvanized (Supplemented from competitor data) |
Applicable Bridge Depth | Exceeds 1.5 m |
Applicable Bridge Types | Double/triple/quadruple-row, double-deck, elevated (>5m), heavy-load (>80 tons), long-span (>30m), curved, and military bridges |
Certifications | ISO9001, Material certificates, Test reports |
Our vertical braces are engineered to deliver unparalleled reliability, directly addressing the most pressing challenges faced by structural engineers and project managers. By integrating these components into your infrastructure, you dramatically improve overall safety and operational longevity.
Exceptional Torsional Stiffness: Instantly fortifies the bridge against lateral-torsional buckling, specifically under unpredictable eccentric loads.
Integrated Spatial Stabilization: Works in perfect harmony with horizontal and diagonal braces to forge a monolithic, torsion-resistant box girder.
Inter-Layer Shear Transfer: In complex double-deck configurations, these braces effectively manage and distribute inter-layer shear forces, preventing structural slip.
Rapid Deployment Capability: Designed with precision-machined pin holes and connection plates, allowing construction crews to experience a seamless fit, drastically reducing assembly time.
Extreme Environment Resilience: The heavy-duty surface treatments ensure that the steel remains impervious to moisture, salt, and abrasive winds, minimizing maintenance cycles.
The core philosophy behind our vertical brace design is the absolute mitigation of structural vulnerability. When multiple rows of Bailey panels are deployed, the risk of relative vertical displacement becomes a critical concern. Our braces act as the definitive countermeasure, locking the trusses at an identical height to ensure cooperative load sharing across the entire span.
This intelligent distribution of weight prevents any single panel from bearing disproportionate stress, thereby extending the lifespan of the entire bridge. Furthermore, the stabilization system is vital for:
Neutralizing lateral sway induced by severe wind loads on elevated decks exceeding 5 meters in height.
Counteracting the intense centrifugal forces generated by heavy vehicles navigating curved temporary bridges.
Transforming separate, vulnerable trusses into a single, highly stable box section capable of withstanding dynamic, multi-directional forces.
Providing essential torsional restraint that is indispensable for bridges with a depth exceeding 1.5 meters.
We understand that the foundation of any safe infrastructure lies in the uncompromising quality of its raw materials. That is why every vertical brace we manufacture is forged from premium high-strength Q235B or Q345B steel. Whether configured as a round bar, angle steel, or square tube, the material exhibits extraordinary tensile and compressive stiffness, giving you a tangible sense of security when handling the dense, robust metal.
Our rigorous quality control protocols leave no room for error, ensuring that every component performs flawlessly under extreme operational conditions.
Certified Manufacturing Excellence: Our production facilities operate under strict ISO9001 certification, guaranteeing consistent, repeatable quality across every batch.
Comprehensive Documentation: We provide full transparency with every shipment, including detailed material certificates, exhaustive test reports, and official quality certificates.
Precision Tolerances: Post-installation, our braces maintain a verticality deviation of ≤ 1/200, a testament to the exacting standards of our fabrication process.
Defect-Free Finishes: The protective coatings are applied evenly, ensuring a smooth, tactile surface that repels corrosive agents and withstands the harshest climates.
In the fast-paced world of infrastructure development, adaptability is just as crucial as strength. Our vertical braces are designed with a highly standardized, modular architecture that significantly reduces project turnaround times and lowers long-term procurement costs. By offering typical brace lengths of 450 mm, 900 mm, and 1350 mm, we ensure immediate compatibility with a wide array of panel spacings.
This focus on interchangeability empowers your engineering teams to respond dynamically to changing site requirements without the need for custom fabrication delays.
Seamless Component Integration: The standardized dimensions mean that our braces fit perfectly into existing Bailey bridge frameworks, eliminating the need for on-site modifications.
Cost-Effective Reusability: Designed for multiple deployment lifecycles, these braces can be easily disassembled, transported, and reinstalled on new projects, maximizing your return on investment.
Simplified Inventory Management: By utilizing interchangeable parts, procurement managers can streamline their inventory, reducing the complexity of stocking spare components.
Rapid Replacement: In the event of localized damage, individual braces can be swapped out swiftly, minimizing bridge downtime and maintaining uninterrupted traffic flow.
Installation Method Recommendation
Time is a critical asset on any construction site. We have engineered our vertical braces to facilitate an incredibly efficient erection process, minimizing the reliance on heavy machinery and reducing intensive labor hours. The precisely machined connection plates and pin holes align flawlessly with Bailey chord or web nodes, allowing assembly teams to secure the structure with standard bolting techniques.
The tactile sensation of sliding a perfectly fitted pin into place and torquing the bolts to their specified values provides immediate reassurance of a job well done.
Manual Assembly Friendly: The intelligent design allows for swift manual positioning and bolting, meaning your crews can progress rapidly without waiting for large crane availability for every single component.
Strategic Placement Protocols: Installed every 3–6 meters along the span—with necessary densification at the ends and midspan—the installation rhythm becomes predictable and highly efficient.
Comprehensive Guidance: We empower your teams with detailed structural drawings, comprehensive manuals, and step-by-step video guides to eliminate any guesswork during erection.
On-Site Supervision: For complex deployments, our experienced technicians are available to provide on-site guidance, ensuring that the installation procedure adheres strictly to safety and engineering standards.
No two engineering challenges are exactly alike, which is why our vertical braces are built to excel across a vast spectrum of demanding applications. From military deployments requiring rapid, frequent assembly to long-span civilian infrastructure, these components provide the critical stabilization needed for success. As a direct manufacturer, we possess the agility to tailor our solutions directly to your unique project parameters.
Our engineering team collaborates closely with your project managers to deliver structural solutions that fit perfectly, both physically and financially.
Heavy-Load and Long-Span Mastery: Essential for temporary bridges carrying loads exceeding 80 tons or spanning over 30 meters, integrating multiple rows into a monolithic, unyielding section.
Complex Configurations: Perfectly suited for double, triple, or quadruple-row setups, as well as double-deck designs where preventing inter-layer slip is paramount.
Seismic and Curved Adaptability: Enhances ductility and energy dissipation in earthquake-prone zones, while providing necessary torsional restraint against centrifugal forces on curved bridges.
Bespoke Engineering Services: We offer free, comprehensive structural calculations and custom drawing services, ensuring that even the most unconventional bridging requirements are met with precision.
When lives and valuable cargo depend on the integrity of your infrastructure, assumptions are not an option. Our vertical braces are subjected to a battery of grueling tests to ensure they exceed national and international bridge loading standards, including HS-15, HS-20, and HS-25. We simulate the most extreme environmental and traffic conditions to guarantee absolute safety before the product ever leaves our facility.
This uncompromising dedication to testing ensures that your bridge will perform flawlessly, even under continuous, heavy-duty operational stress.
Rigorous Static Testing: Each brace design is tested to withstand immense static pressure, verifying its ability to maintain structural form without yielding or buckling.
Dynamic Load Simulations: We replicate the continuous, rhythmic pounding of heavy vehicular traffic to ensure the steel’s fatigue resistance is exceptional over time.
Torque and Tension Verification: All connection points are tested to confirm they can hold specified torque values securely, preventing any loosening caused by structural vibration.
Safety Factor Optimization: Our structural designs incorporate generous safety margins, providing an extra layer of security for unpredicted load spikes or severe weather events.
Procuring high-quality components is only the first step; having a reliable partner for the lifecycle of your project is what truly guarantees success. As a source manufacturer with our own dedicated production base, we offer an unparalleled depth of technical support. We supply comprehensive peace of mind from the moment of inquiry through to final project completion.
Our commitment to your success is reflected in our robust, round-the-clock service infrastructure.
24/7 Rapid Response: Our dedicated after-sales team is available around the clock to address any technical queries or urgent requirements, ensuring your project never stalls.
End-to-End Solutions: We provide a full suite of services, from initial site surveying and structural recommendations to the final supply of all necessary steel components, pins, and bolts.
Expert Erection Consultation: We meticulously study your site drawings and surrounding area data to recommend the safest, most efficient installation procedures tailored to your specific terrain.
Continuous Partnership: We stand by the quality of our products long after the bridge is erected, offering ongoing support for maintenance, disassembly, and future re-deployment strategies.
Selecting the right manufacturing partner is a critical decision that impacts the safety, budget, and timeline of your entire infrastructure project. We distinguish ourselves through a relentless commitment to engineering excellence and customer-centric service. By bypassing intermediaries and working directly with our state-of-the-art production facility, you unlock unmatched value and technical expertise.
We are not just component providers; we are your dedicated structural engineering allies.
Direct Source Advantage: Benefit from optimized pricing and transparent communication by partnering directly with the manufacturer, eliminating unnecessary delays and markups.
Deep Industry Expertise: With years of specialized experience in modular steel bridges, our engineering team anticipates challenges and provides proactive, innovative solutions.
Uncompromising Quality Assurance: From the initial selection of Q235B/Q345B steel to the final galvanization process, every step is monitored under strict ISO9001 protocols.
Comprehensive Customization: We possess the in-house capabilities to tailor structural calculations, adapt brace dimensions, and modify connection interfaces to suit your exact specifications seamlessly.
We understand that complex engineering projects require clear, precise information. Below, we have compiled answers to some of the most critical technical questions regarding our vertical braces.
In long-span bridges exceeding 30 meters, eccentric loads can cause the structure to twist. Our vertical braces act as rigid connectors between side-by-side Bailey panels, forcing multiple separate trusses to act as a single, integrated box section. This dramatically enhances the overall torsional stiffness, effectively neutralizing the twisting forces and preventing buckling.
Achieving this precise tolerance requires a methodical erection sequence. We recommend installing the braces concurrently with the horizontal and sway bracing. Using calibrated torque wrenches, all bolts must be tightened to our specified values only after the entire panel section is aligned. Our detailed manuals and available on-site supervision ensure your team can consistently meet this strict deviation standard.
Absolutely. For double-deck Bailey bridges, our vertical braces are essential for connecting the upper and lower trusses. They are specifically engineered to transfer inter-layer shear forces efficiently, preventing any structural slip between the decks. The standard lengths (450 mm, 900 mm, 1350 mm) are designed to match typical panel spacings perfectly without modification.
We maintain absolute transparency regarding our material quality. With every shipment, we provide comprehensive documentation including official material certificates from the steel mills, detailed laboratory test reports confirming the tensile and compressive strength of the Q235B or Q345B steel, and our own ISO9001-backed quality certificates.
As a direct manufacturer with our own production base, we have complete control over the fabrication process. If your project requires non-standard panel spacing, our engineering team will provide free structural calculations and draft custom drawings. Once approved, we quickly reconfigure our production lines to manufacture braces that meet your exact dimensional requirements without compromising structural integrity or extending lead times unnecessarily.
