Product Description
As a premier direct manufacturer and dedicated supplier of advanced infrastructure components, we engineer the Reinforced Chord For Bailey Bridge Load Capacity Enhancement to meet the most demanding structural requirements. Designed to seamlessly integrate with existing truss systems, this component provides an immediate, high-efficiency upgrade to bridge stiffness and weight-bearing capabilities without altering the fundamental geometry of the structure.
Engineered from premium high-strength structural steel for maximum durability.
Instantly doubles allowable bending moments for heavy-duty traffic.
Fully modular design compatible with standard SJ-200 and SJ-321 systems.
Supplied directly from our specialized manufacturing facility with stringent quality control.

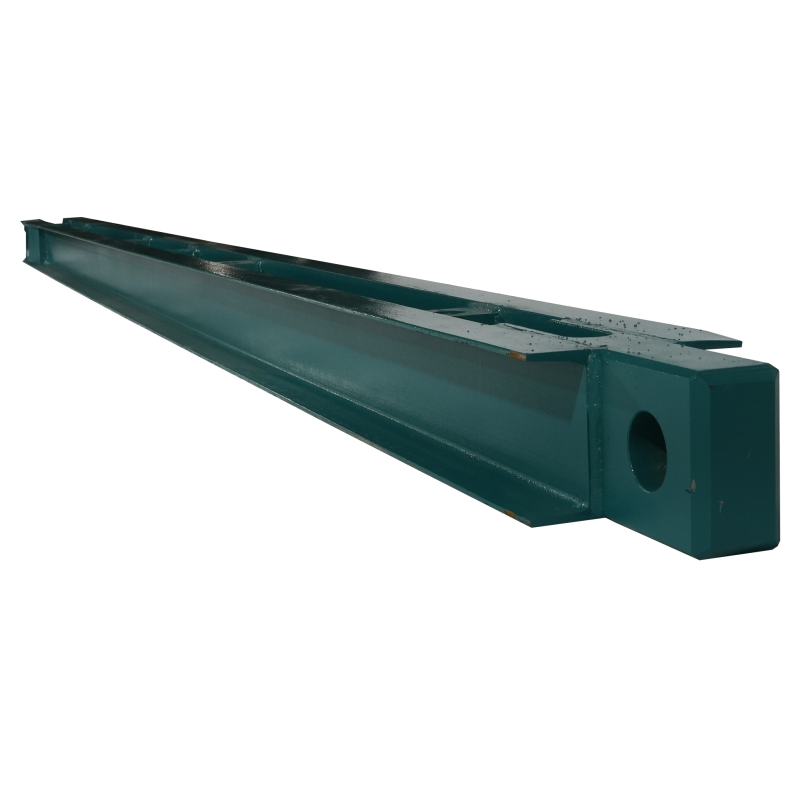

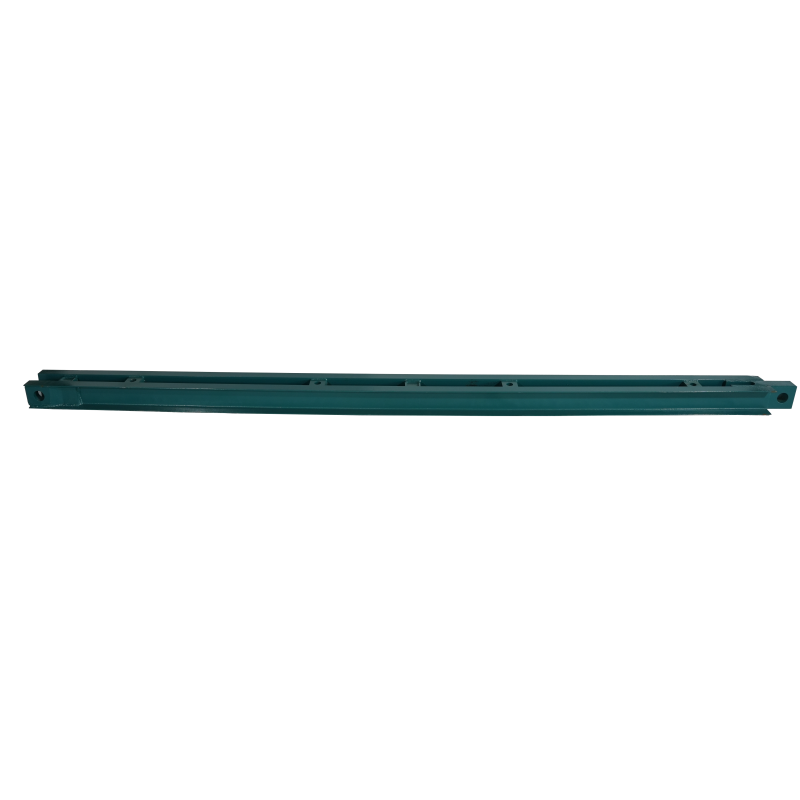

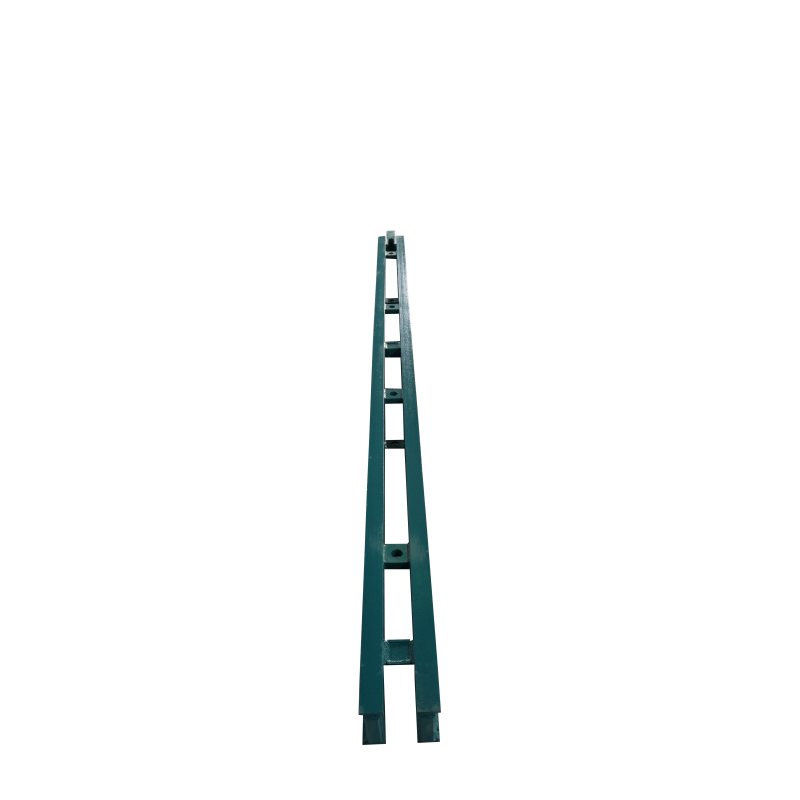

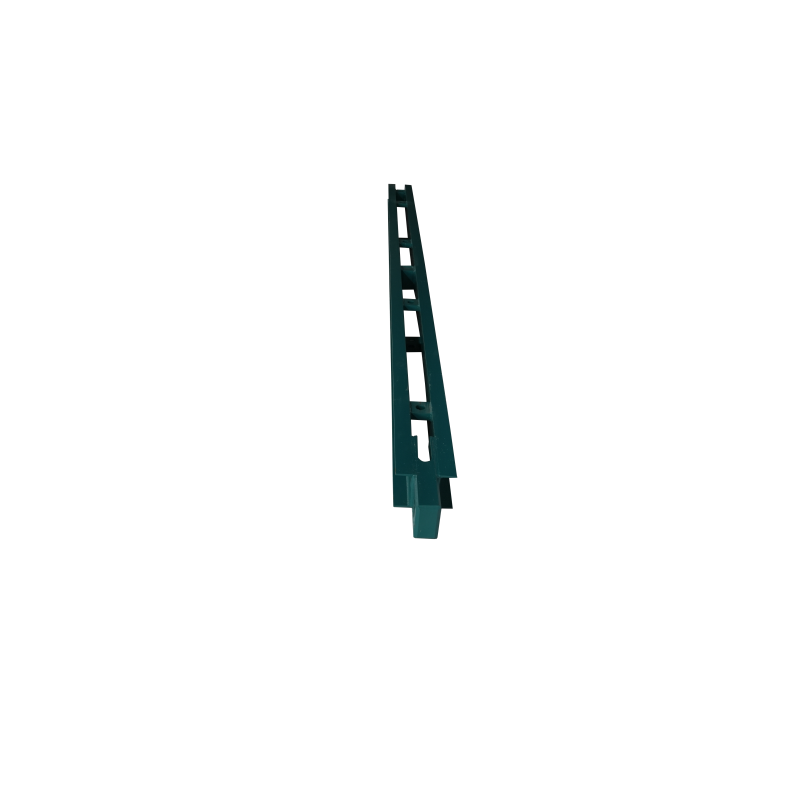

The Reinforced Chord is an independent, precision-engineered structural member designed to be securely affixed to the exterior of the top or bottom chords of a standard Bailey panel. When you run your hands along its surface, you can feel the heavy-duty, friction-type anti-slip coating—a specialized texture engineered to guarantee absolute stability and zero slippage when mated with the main chord. Crafted from high-yield structural steel, the component exudes a robust, industrial resilience, capable of withstanding the immense dynamic forces generated by heavy vehicular traffic. The visual alignment is flawless, with end details meticulously machined to mirror the main chord perfectly, ensuring that every pin and connecting plate slides into place with a satisfying, secure metallic resonance.
By working compositely with the main truss, this reinforced component fundamentally transforms the structural integrity of the bridge. It significantly increases the section modulus, directly addressing the critical need for higher load capacities in modern infrastructure projects. Rather than dismantling and replacing an entire bridge to accommodate heavier loads, engineering teams can simply bolt these chords into place. The result is a massive leap in performance—upgrading a standard crossing to support 100-tonne trucks—while keeping the original panel height entirely unchanged. The sheer efficiency of this upgrade path saves countless hours of labor, preserves existing material investments, and delivers a rock-solid, deflection-resistant crossing that performs reliably under the most punishing environmental conditions.
Parameter | Specification Details |
|---|---|
Product Name | Reinforced Chord For Bailey Bridge |
Applicable Bridge Types | SJ-200 (CB200/ZB200), SJ-321 (CB100) Standard Bailey Bridge |
Standard Length | 3.048m (for CB100/CB200/ZB200) / 3.000m (for Type 321) |
Common Section Specifications | [10 Channel Steel, [12 Channel Steel, □100×5 Square Tube, C14b Hot-rolled Channel Steel |
Main Material | High-strength structural steel (Equivalent to or higher than main chord, e.g., Q345 / Q345q / Q355) |
Connection Method | Chord bolts or connecting plates |
Bolt Specifications | M20 (Preload must reach 400 N·m) / M24×170mm high-strength bolts |
Surface Treatment | Friction-type anti-slip coating applied to contact surfaces |
Load Capacity Enhancement | Allowable bending moment roughly doubled; Load class upgraded from HS15 to HS20 or higher (supports 100-ton heavy trucks) |
Span Extension Capability | Supports extending standard spans from 15m to 24m and above |
Quality Certification | ISO9001 certified, meets national standards. Material certificates, test reports, and quality certificates available |
Manufacturer Attributes | Direct source manufacturer (Located in Zhenjiang, Jiangsu, with independent production lines) |
Our Reinforced Chord is engineered to deliver unparalleled structural enhancement through smart, modular design. It empowers project managers and engineering teams to push the boundaries of existing bridge frameworks with minimal intervention.
Asymmetric Strengthening: Offers the flexibility to add reinforcement exclusively to the top (compression zone), the bottom (tension zone), or both sides simultaneously, adapting precisely to the specific stress profile of your project.
Deflection Mastery: Exceptionally effective at controlling deflection in critical locations, such as the lower chord of the upper deck in complex double-deck bridge configurations, ensuring a stable and comfortable crossing.
Variable-Depth Strengthening: Allows for localized reinforcement at midspan regions where the bending moment is at its absolute highest, creating an optimized, variable-depth structural profile without excess material waste.
Scientific Application: Frequently utilized in experimental bridges, where the ease of installing and removing these modular chords aids engineers in studying dynamic load effects and overall bridge performance.
When evaluating infrastructure upgrades, the actual structural yield and load-bearing leap are the most critical metrics. Our Reinforced Chord is specifically designed to work compositely with the main chord, fundamentally altering the physics of the truss system.
By significantly increasing the section modulus of the truss, this component achieves a near 100% increase in the allowable bending moment. What this means in practical application is a profound transformation in capability: a standard bridge previously limited to HS15 traffic can be rapidly upgraded to HS20 or higher classifications. This enables the safe passage of 100-tonne heavy-duty trucks over temporary or permanent crossings.
Extends standard operational spans effortlessly from a baseline of 15 meters to an impressive 24 meters or more.
Maintains the original panel height, ensuring that clearance profiles and existing approach ramps require zero modification.
Provides the highest ratio of capacity gain to self-weight increase, making it the most efficient strengthening solution available on the market.
The longevity and safety of any load-bearing structure depend entirely on the uncompromising quality of its raw materials and the precision of its manufacturing. We utilize strictly graded, high-strength bridge-specific structural steel—such as Q345, Q345q, and Q355 hot-rolled channels—to fabricate every single chord.
This premium material selection guarantees exceptional resistance to both bending and torsional stress, alongside superior anti-fatigue properties under continuous dynamic loading. Furthermore, the manufacturing process involves meticulous surface engineering.
Every contact surface is treated with a specialized friction-type anti-slip coating, ensuring absolute lock-in when mated with the main truss.
Engineered to accommodate high-strength fastening systems, specifically M20 bolts (requiring a precise 400 N·m preload) or M24×170mm bolts.
Manufactured under strict tolerances so that end details flawlessly match adjacent sections via standard pins or connecting plates.
Seamless integration with existing infrastructure is a non-negotiable requirement for rapid deployment. Our Reinforced Chords are the epitome of modular engineering, designed to eliminate the guesswork and custom fabrication often associated with structural upgrades.
Available in exact standard lengths of 3.048 meters (perfectly matching CB100, CB200, and ZB200 systems) and 3.000 meters (for Type 321 systems), these components align flawlessly with your current inventory. The standardization extends to every connection point, ensuring universal compatibility.
Eliminates the need for on-site drilling or modifications; the pre-engineered connection points align perfectly with existing Bailey panels.
Fully compatible with both SJ-200 and SJ-321 mainstream bridge systems, acting as a universal upgrade key.
Standardized cross-sections (like [10, [12 channels, or □100×5 square tubes) ensure predictable geometric integration regardless of the bridge's original configuration.
The economic advantage of the Reinforced Chord lies in its extraordinary versatility across a multitude of engineering scenarios. It is not merely an upgrade component; it is a comprehensive solution for asset preservation and capability expansion.
For permanent installations, it allows for in-situ capacity upgrades without the staggering costs of complete bridge replacement. In mountainous areas, it is frequently deployed on long-span pedestrian or cable-supported bridges to drastically reduce deflection and improve user comfort under light but dynamic loads.
Disaster Relief: Enables the rapid, overnight upgrading of load classes on existing temporary bridges to allow heavy rescue equipment to pass.
Military Logistics: Serves as a standardized, modular component in military bridging systems, selected and deployed on-demand based on tactical load requirements.
Economical Repair: Acts as a highly cost-effective repair component. If a main chord sustains localized damage, adding a reinforced chord restores and exceeds original structural integrity, saving the massive expense of replacing the entire panel.
Installation Method Recommendation
Time is often the most expensive variable in infrastructure projects. The Reinforced Chord is designed to accelerate construction schedules through straightforward, standardized installation procedures that require minimal specialized equipment.
Because these are precision-precast components, your construction team can bypass complex on-site fabrication. Using a suitable lorry-mounted crane, the assembled truss units (complete with lower reinforced chords, bracing, and end posts) can be swiftly lifted onto the abutments.
Upper chord reinforcements can be installed progressively as the crane moves across the newly paved bridge decking, streamlining the workflow.
Requires only standard tools for securing the M20/M24 high-strength bolts to their specified preload values.
Accompanied by comprehensive installation guides, detailed manuals, and instructional videos, ensuring your team executes the erection safely and efficiently.
Partnering with a reliable source manufacturer provides an unparalleled advantage in large-scale infrastructure development. Operating from our expansive, dedicated production base in Zhenjiang, Jiangsu, we control every variable of the manufacturing process from raw steel procurement to final anti-slip coating.
We do not just supply steel; we supply engineered solutions. Our facility is equipped with specialized production lines exclusively dedicated to Bailey bridges and their intricate components, guaranteeing a level of craftsmanship that general fabricators simply cannot match.
Certified Excellence: Proudly holding ISO9001 certification, with all products strictly meeting or exceeding national structural standards.
Comprehensive Documentation: Every shipment is backed by complete material certificates, rigorous test reports, and undeniable quality certificates.
Free Engineering Services: We provide complimentary structural calculations, detailed drawing analysis, and customization services to ensure the product perfectly matches your site's specific demands.
Unwavering Support: Offering 24-hour after-sales service and the availability of on-site expert supervision to guide your construction team through complex erections.
One of the primary engineering advantages of this component is that it attaches directly to the outside of the top or bottom chord. This composite integration significantly boosts the section modulus and load capacity while keeping the original panel height and internal clearance entirely unchanged, requiring no modifications to approach ramps or overhead limits.
Absolutely. It serves as an exceptionally economical repair component. When a main chord experiences damage or fatigue, installing a reinforced chord over the affected area can fully restore and even surpass the original structural strength. This method completely eliminates the labor-intensive and costly process of removing and replacing an entire Bailey panel.
To guarantee composite action between the main truss and the reinforcement, the contact surfaces of our chords are treated with a highly specialized friction-type anti-slip coating. Combined with the strict 400 N·m preload requirement for our M20 high-strength bolts, this treatment ensures absolute structural lock-in, preventing any micro-movements even under the stress of 100-tonne vehicles.
Yes, comprehensive engineering support is a core part of our offering. Our in-house engineering team provides free structural calculations and detailed drawings tailored to your specific span and load requirements. We ensure that your upgrade from HS15 to HS20 or higher is mathematically verified and structurally sound before any components are shipped.
Not necessarily. The modular nature of our product allows for highly efficient asymmetric strengthening. Depending on the specific bending moments and stress distribution of your bridge, you can choose to add the reinforced chord exclusively to the top (compression zone) or only to the bottom (tension zone). Our engineers can help you determine the most material-efficient configuration for your specific load demands.
