Product Description
As a premier manufacturer and direct supplier of heavy-duty structural bridge components, we engineer the 900-Brace rigid support member to deliver uncompromising stability for standard double or multi-row panel setups.
Engineered for exact 900 mm center-to-center precision alignment.
Purpose-built to establish lateral connections and eliminate structural torsion.
Sourced directly from an internationally certified structural fabrication facility.

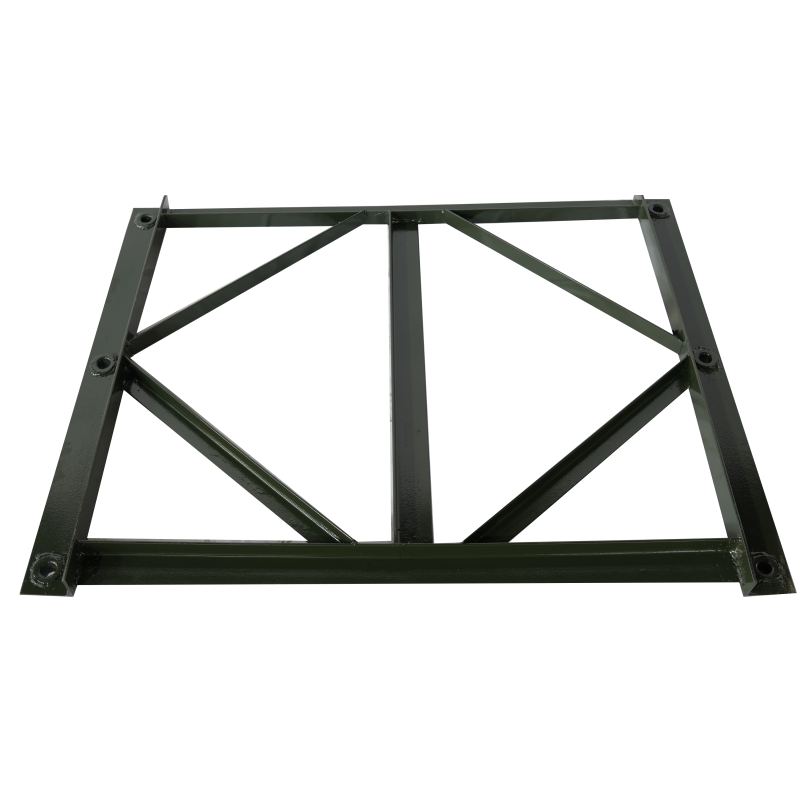

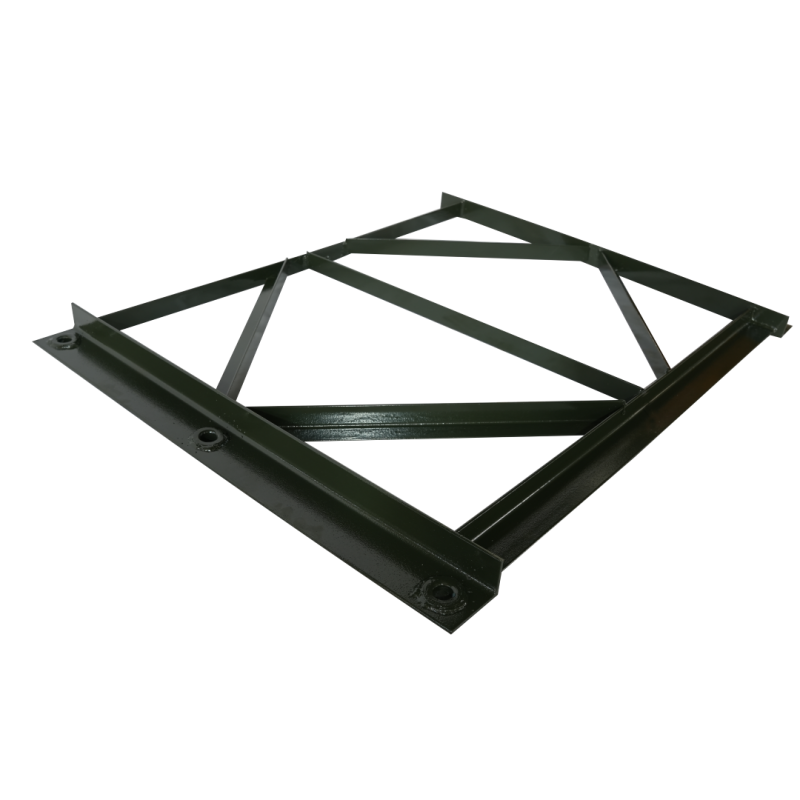

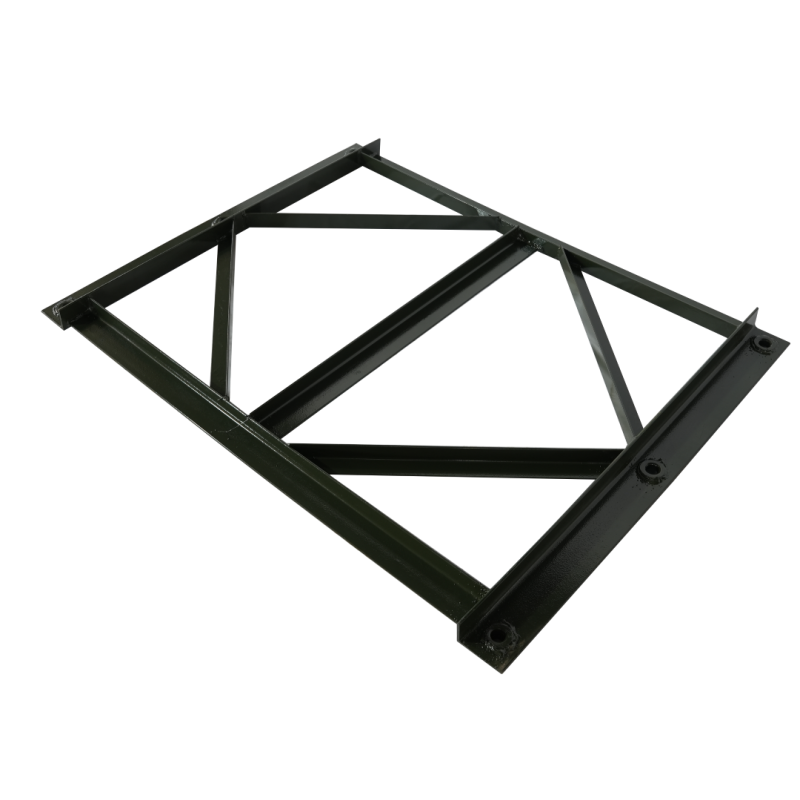

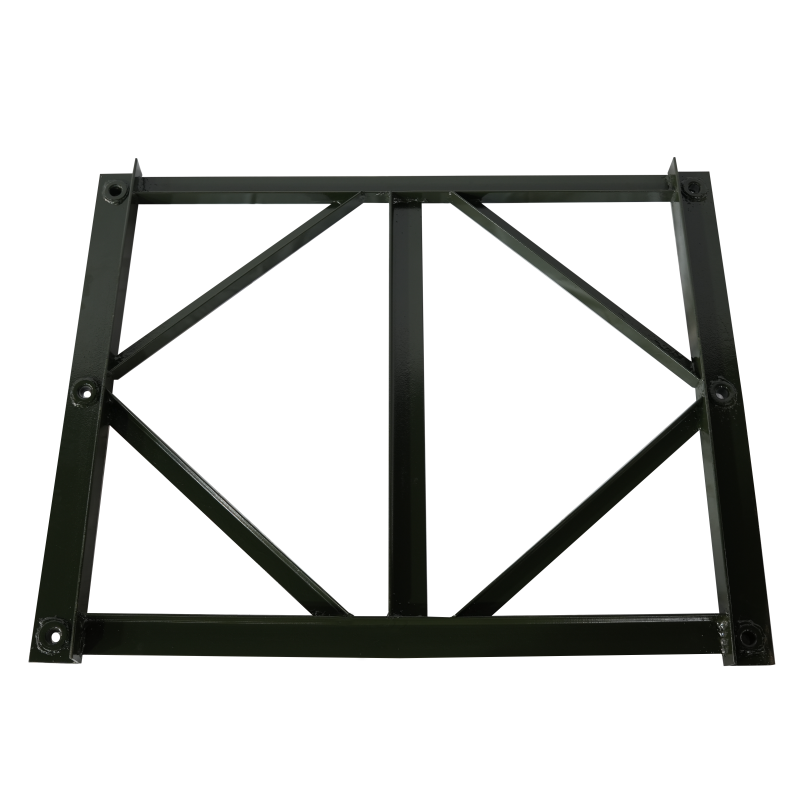

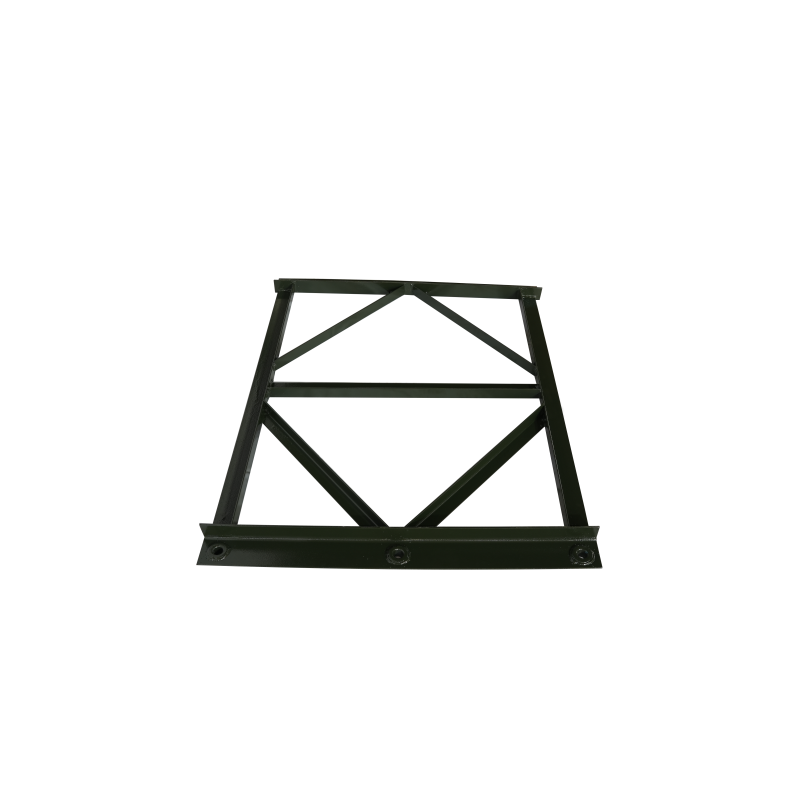

The 900-Brace rigid support member stands as the definitive structural backbone for complex panel bridge configurations. Forged from high-grade steel, its tactile solidity and precise geometric lines reflect a meticulous manufacturing process designed to withstand immense mechanical stress. When integrated into your bridge architecture, this 900 mm support component effectively transforms independent panel rows into a unified, impenetrable box section.
It seamlessly transfers transverse shear forces and bending moments, eliminating the subtle structural vibrations and lateral deflections that compromise load-bearing integrity. The metallic finish, whether standard or hot-dip galvanized, speaks to its resilience against harsh environmental elements. By locking standard double-row or multi-row panels into a rigid framework, it ensures uniform load distribution across the entire span. Your engineering teams will immediately recognize the exactness of the machined end plates and the flawless weld seams, which guarantee a flush, secure fit against chord nodes. This component does not merely connect; it actively reinforces the entire bridge matrix, providing the critical torsional stiffness required for heavy-duty transit and long-span stability.
Specification | Detail |
|---|---|
Standard Length | 900 mm |
Applicable Row Spacing | 900 mm center-to-center |
Common Material/Section | Angle steel (L63×6), Channel steel ([8), Square tube (□60×4) |
Slenderness Ratio | ≤ 120 (with buckling verification) |
Standard Layout Spacing | 3–6 m (≤3 m at supports/midspan; 2 m in coastal high-wind areas) |
Connection Method | End plate welding or bolting (double-bolt for high lateral force; quick-pin for military) |
Surface Treatment | Hot-dip galvanizing (for permanent bridges) |
Quality Certification | ISO9001, material certificates, test reports, quality certificates |
Manufacturer Type | Direct source factory (Zhenjiang, Jiangsu) |
Value-added Services | Free structure calculation, drawing design, non-standard customization |
Elevate your infrastructure projects with a support member engineered for absolute reliability. The 900-Brace is designed to address the most demanding structural challenges, ensuring your bridge constructions remain steadfast under dynamic mechanical loads.
Integral Box Section Formation: By efficiently transferring transverse shear forces and bending moments, it forces multi-row trusses to act as a single, highly rigid box section, drastically increasing overall torsional stiffness.
Vertical Deformation Control: When deployed vertically, it actively manages the relative vertical deformation between adjacent rows, guaranteeing an impeccably uniform load distribution across the entire deck surface.
Midspan Deflection Reduction: Strategically placed in midspan regions, it significantly curbs lateral deflection, thereby enhancing the driving stability and safety of heavy transit vehicles crossing the span.
Adaptive Connection Systems: Features versatile machined end plates that can be welded or bolted directly to chord nodes via support bolts, offering rapid flexibility based on specific site erection requirements.
Heavy-Load Synergy: Works in perfect conjunction with 900 connecting plates to establish a comprehensive and impenetrable lateral bracing network, unlocking maximum load capacities for heavy-duty applications.
The foundation of any enduring bridge lies in the uncompromising quality of its raw materials. We utilize premium-grade angle steel, channel steel, or square tubing to forge these support members, ensuring they can withstand the harshest mechanical demands without yielding.
Strict slenderness ratio control (≤120) backed by rigorous mathematical buckling verification to prevent structural failure.
Exceptional capability to absorb and transfer transverse shear forces and bending moments across the bridge matrix.
Transforms independent, vulnerable multi-row trusses into a cohesive, high-strength box section capable of bearing extreme weights.
Precision-engineered cross-sections (such as L63×6 or □60×4) selected specifically for their optimal strength-to-weight ratios.
Engineering versatility is critical for modern infrastructure deployment. This bracing component is meticulously calibrated for standard 900 mm center-to-center panel spacing, making it a universal solution for a wide array of bridge architectures.
Flawless integration with double, triple, or quadruple row heavy-duty bridge configurations without the need for structural modifications.
Extensively utilized in critical highway and railway construction trestles where reliability is non-negotiable.
Provides essential lateral stability for medium to large temporary bridges spanning distances of 20 to 60 meters.
Perfectly suited for complex engineering architectures, including curved bridge setups and double-deck configurations.
Nature and dynamic mechanical forces present constant threats to structural integrity. Our bracing solutions are engineered to counteract extreme lateral forces effectively, ensuring your bridge remains operational regardless of the environment.
Supports enlarged cross-sections and double-bolt reinforcements for environments prone to strong winds or seismic activity.
Effectively resists severe lateral torsion generated by vehicle centrifugal forces on curved bridge transit paths.
Allows for condensed 2-meter spacing intervals in coastal high-wind zones to completely neutralize severe aerodynamic loads.
Maintains absolute structural rigidity even when subjected to the unpredictable dynamic forces of heavy construction equipment.
Long-term asset protection is a primary concern for permanent infrastructure investments. We address this through advanced surface treatment technologies that protect the steel core from degradation over decades of use.
High-standard hot-dip galvanizing process applied to all surfaces, creating a thick, metallurgical zinc bond.
Forms an impenetrable barrier against moisture, salt spray, and aggressive chemical corrosion in coastal or industrial environments.
Ensures the functional lifespan of the bracing components perfectly matches the extended longevity of the main permanent bridge structure.
Significantly reduces ongoing maintenance costs by eliminating the need for frequent repainting or rust remediation.
Installation Method Recommendation
Time is a critical resource on any construction site. Our bracing systems are designed to accelerate the erection process while minimizing the margin for human error, getting your infrastructure operational faster.
Standardized end plates allow for rapid, secure bolting procedures, eliminating the need for complex on-site welding.
Military-grade quick-pin connection options available for rapid assault bridge deployment in emergency scenarios.
Comprehensive installation guides provided, including detailed CAD drawings, standardized manuals, and step-by-step instructional videos.
Expert on-site supervision and 24-hour engineering support available to ensure flawless execution from the first panel to the final inspection.
Sourcing directly from our specialized manufacturing base in Zhenjiang, Jiangsu, guarantees unparalleled quality assurance and cost efficiency. We control every step of the fabrication process to deliver components you can trust.
Elimination of intermediary markups through direct factory supply, optimizing your project procurement budget.
Stringent ISO9001-certified manufacturing protocols ensuring consistent dimensional accuracy across every single brace produced.
Complete transparency with full access to raw material certificates, mechanical test reports, and official quality credentials.
Complimentary structural calculation, comprehensive drawing design, and bespoke non-standard customization services tailored to your exact site requirements.
Securing the right manufacturing partner is as critical as the steel itself. We bring decades of specialized engineering expertise directly to your procurement pipeline, ensuring every component meets exact international standards and project demands.
Direct Manufacturing Authority: Operating from our own advanced production base, we maintain absolute control over the fabrication process, ensuring rapid fulfillment and strict quality oversight.
Comprehensive Solution Provider: Beyond individual bracing components, we supply full sets of steel bridge elements, from chords and frames to deck panels and bearing pins, acting as your single-source supplier.
Engineering Excellence: Our dedicated technical teams provide free structural calculations and site-specific customization, ensuring our components integrate flawlessly with your unique project parameters.
Proven Global Compliance: Every unit dispatched is backed by ISO9001 certification and comprehensive material testing reports, giving your quality assurance teams complete peace of mind.
End-to-End Project Support: From the initial blueprint analysis to on-site installation supervision and continuous after-sales service, we remain deeply invested in the success and safety of your infrastructure build.
The brace acts as a highly rigid lateral connector. By locking the structural panels at exact 900 mm intervals, it forces the independent rows to distribute shear forces collectively. This mechanical synergy transforms the structure into an integral box section, significantly elevating its torsional stiffness and preventing relative displacement under heavy dynamic loads.
Absolutely. While the standard layout spacing is typically calculated between 3 to 6 meters, we highly recommend reducing the spacing to 2 meters in coastal high-wind areas. This condensed configuration drastically improves the bridge's aerodynamic resistance to severe lateral wind loads, ensuring absolute structural stability during extreme weather events.
For permanent infrastructure projects, we apply a premium hot-dip galvanizing treatment to the braces. This metallurgical bonding process creates a robust zinc coating that provides exceptional resistance against rust, moisture, and environmental corrosion, ensuring the brace's service life equals that of the main bridge structure without requiring constant maintenance.
Yes, our dedicated engineering department offers complimentary structural calculations and detailed drawing designs. If your project requires unique cross-sections, specialized connection methods (such as double-bolt reinforcements or quick-pin systems), or specific custom lengths, we provide full non-standard customization directly from our manufacturing base to meet your exact specifications.
We maintain rigorous, uncompromising quality control protocols. Every shipment is accompanied by comprehensive documentation, including ISO9001 certification records, raw material certificates from the steel mills, detailed mechanical test reports, and official quality certificates, ensuring full traceability and compliance with national and international engineering standards.
We advise assigning an experienced construction team to manage the erection. The process begins with assembling bilateral panels into whole construction units on the flat abutments. Using a suitably sized lorry-mounted crane, the combined truss units are positioned. Transoms should be installed starting with the nearest and farthest points to maximize crane capacity and stability. Finally, the sway bracing and 900-braces are systematically installed to lock the lateral structure before paving the deck panels.
