Product Description
As a premier manufacturer and trusted supplier of modular bridge components, we present the 450-Connecting Plate for Bailey Panel Compact Configurations. Engineered for precision and resilience, this essential steel link ensures seamless transverse connections for demanding infrastructure projects.
Modular center-to-center spacing precisely calibrated at 450 mm.
Forged from high-grade steel to maximize structural load transfer.
Sourced directly from the manufacturer, guaranteeing stringent quality control.
Optimized for lightweight, rapid-assembly, and compact bridge frameworks.
Designed to seamlessly integrate with standard Bailey panel chord nodes.

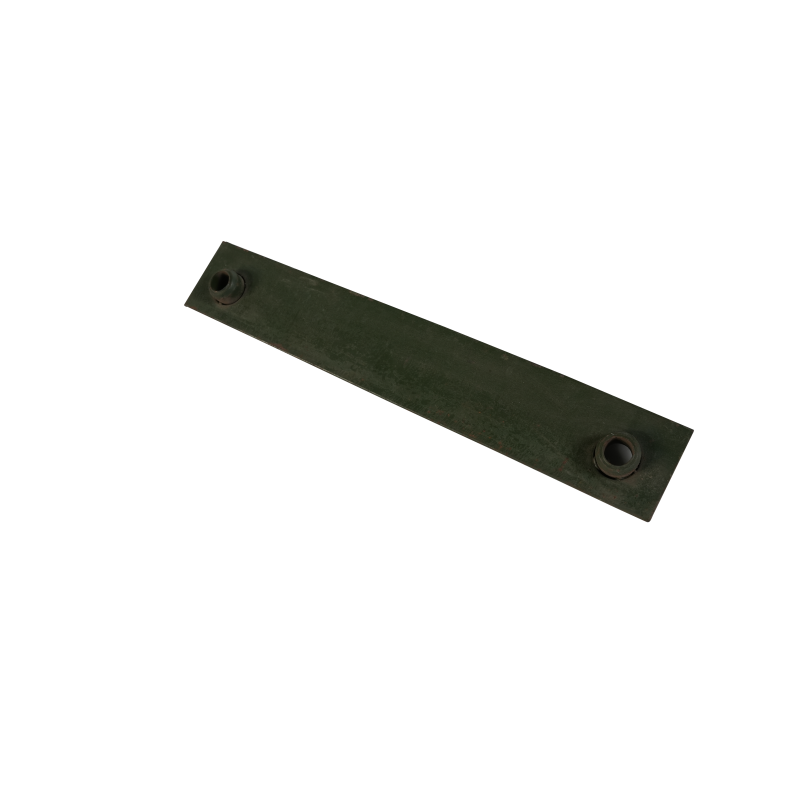

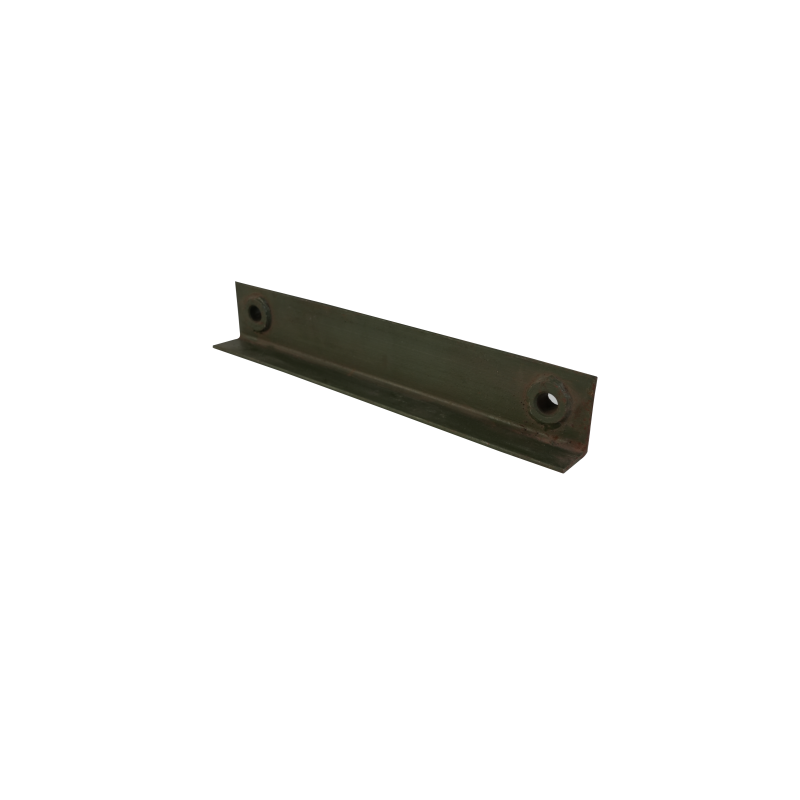

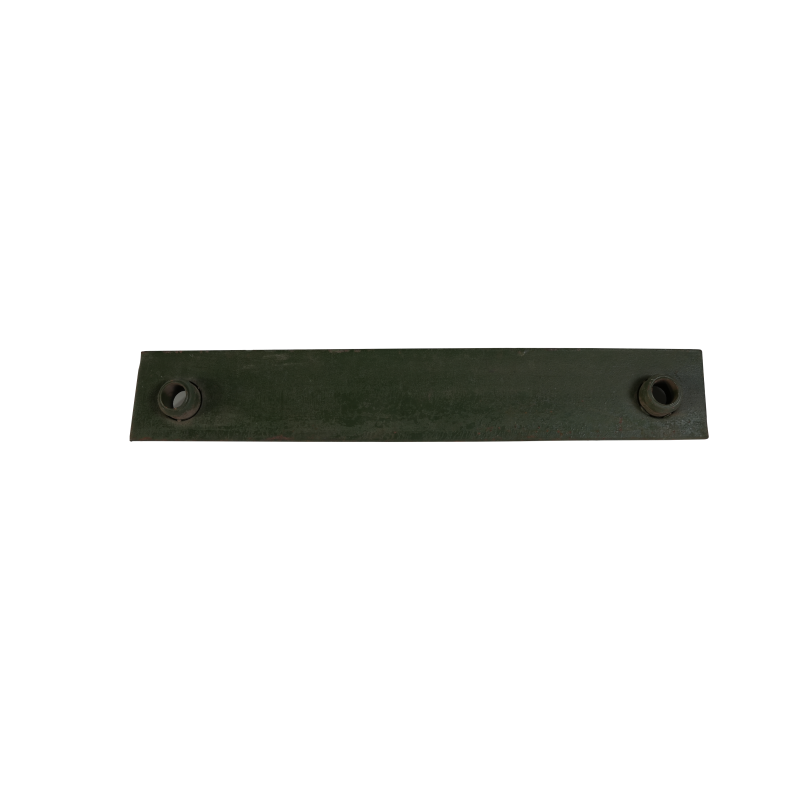

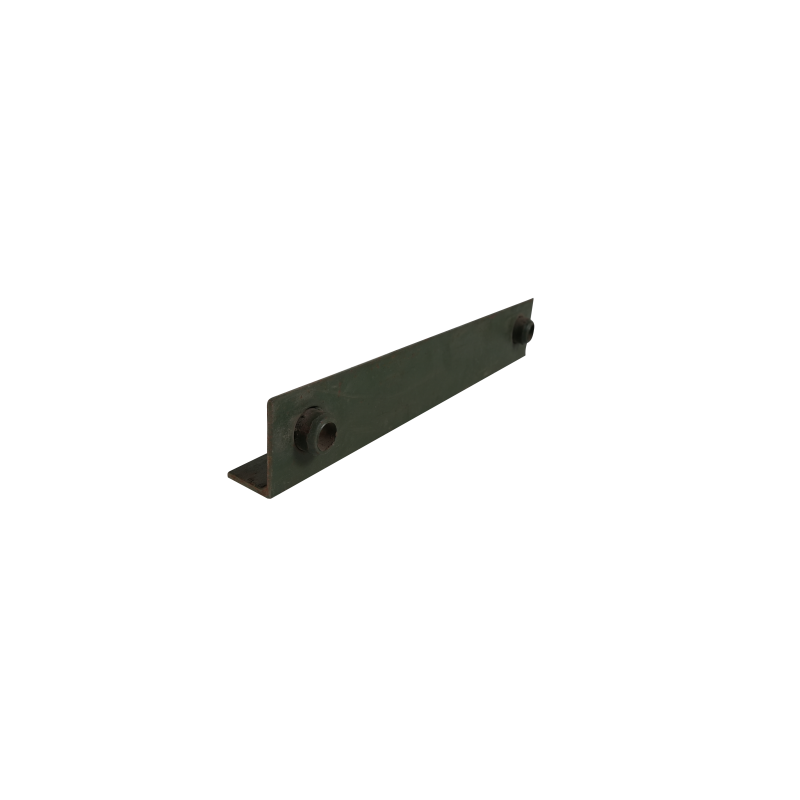

The 450-Connecting Plate stands as the critical transverse tie for compact Bailey panel arrangements, offering a masterful blend of structural integrity and efficient material utilization. When handling this steel link plate, the robust tactile feel of the 10 to 16-millimeter thick high-strength steel immediately conveys its uncompromising load-bearing capabilities. Designed to precisely connect two Bailey panel chords or reinforced chords spaced exactly 450 millimeters apart, it acts as the central nervous system for transverse force distribution. By effectively transferring horizontal forces such as fierce wind loads and the lateral sway of heavy vehicles, it forces double-row configurations to operate as a single, unyielding cooperative unit.
The surface exhibits a meticulously crafted texture, achieved through advanced shot blasting to a pristine Sa2.5 cleanliness level. This specific metallurgical finish optimizes the friction coefficient required for unshakeable friction-type connections, ensuring that the plates grip the chords with immense force once the bolts are tensioned. Its sleek, industrial appearance is not merely aesthetic; it represents a highly calibrated engineering solution that replaces bulkier alternatives. By utilizing this compact plate, engineering teams can substantially reduce the overall self-weight of the temporary or permanent bridge structure without compromising an ounce of stability, facilitating smoother deployments in challenging terrains.
Product Name | 450-Connecting Plate For Bailey Panel Compact Configuration |
|---|---|
Modular Length / Center Distance | 450 mm |
Main Material & Dimensions | High-strength steel (Thickness 10–16 mm, Width 80–120 mm) |
Bolt Hole Configuration | 2–4 bolt holes at each end matching chord bolt patterns |
Compatible Bolt Specifications | M20×50, grade 8.8 or 10.9 high-strength bolts |
Surface Treatment | Shot blasting or sanding to Sa2.5 cleanliness (Customizable galvanized anti-corrosion treatment available) |
Hole Spacing Tolerance | ≤ ±0.3 mm |
Connection Force Type | Friction-type connection (Double-sided plates can be used under heavy loads or high-frequency vibration) |
Quality & System Certification | ISO9001 certification (Material certificates, test reports, and quality certificates provided) |
Packaging & Transportation | Wooden pallets or wooden boxes, covered with high-strength moisture-proof plastic film |
Our 450-Connecting Plate is engineered to elevate the structural integrity of your infrastructure projects while streamlining the installation process. By focusing on critical load-bearing enhancements, this component delivers unparalleled reliability.
Superior Load Distribution: Designed to seamlessly transfer transverse horizontal forces, ensuring that double-row Bailey panels resist lateral loads, wind pressure, and vehicular sway as a unified structure.
Optimized Weight Management: Acts as a highly efficient alternative to longer 900 mm plates in compact configurations, significantly reducing steel consumption and overall bridge self-weight.
Enhanced Friction Grip: The meticulously prepared Sa2.5 surface guarantees maximum friction for the bolted connections, preventing micro-movements under dynamic loads.
Vibration Mitigation: For environments subjected to heavy loads or high-frequency vibrations, the plates can be deployed in a double-sided configuration (one on each side of the chords) to lock the structure securely in place.
Standardized Modularity: Perfectly matches the modular dimensions of Bailey panel chord points, making it an indispensable asset for standardized inventory management and rapid deployment.
When sourcing load-bearing components for critical infrastructure, material integrity is the foremost priority. We understand the rigorous safety demands placed on engineering projects, which is why our connecting plates are forged without compromise to deliver exceptional mechanical performance.
Premium Steel Core: Manufactured from superior high-strength steel with a robust thickness ranging from 10 to 16 mm, providing the ultimate backbone for transverse force resistance.
High-Tensile Fastening Synergy: Engineered to be perfectly paired with grade 8.8 or 10.9 high-strength M20×50 bolts, creating a clamping force that effortlessly handles intense operational stresses.
Dynamic Load Mastery: Effectively absorbs and transfers transverse horizontal forces, including severe wind loads and the lateral sway forces generated by heavy vehicular traffic.
Cooperative Structural Synergy: Ensures that double-row Bailey panels work in perfect cooperative harmony, maintaining structural rigidity even in demanding, high-frequency vibration environments.
For engineering contractors, time on the construction site is a highly valuable asset. Delays caused by misaligned components can derail project timelines and inflate labor budgets. Our manufacturing process is strictly calibrated to eliminate these bottlenecks entirely.
Micro-Precision Tolerances: Bolt hole spacing is machined with an uncompromising tolerance of ≤ ±0.3 mm, completely eradicating installation difficulties and preventing dangerous stress concentrations.
Friction-Optimized Finish: The surface undergoes rigorous shot blasting or sanding to achieve a Sa2.5 cleanliness level, maximizing the friction coefficient crucial for secure, friction-type structural connections.
Seamless Node Integration: The precise 450 mm modular length aligns flawlessly with standard Bailey panel chord nodes, allowing assembly teams to rapidly secure connections without forced adjustments.
Predictable Preload Application: Designed to support diagonal tightening sequences, ensuring that bolts reach within ±10% of their specified preload for uniform, safe pressure distribution across the plate.
Balancing structural robustness with budget efficiency is a continuous challenge for procurement specialists. This compact connecting plate is strategically designed to drive down project costs while maintaining peak performance and safety standards.
Intelligent Material Substitution: In compact steel temporary bridges, this 450 mm plate perfectly replaces bulkier 900 mm alternatives, instantly reducing unnecessary steel consumption.
Self-Weight Reduction: By trimming excess material, the overall dead load of the bridge structure is significantly lowered, reducing the strain on abutments and foundation supports.
Logistical Efficiency: The lighter, more compact profile translates to denser packing, slashing transportation costs and requiring less heavy-duty lifting equipment during site delivery.
Rapid Deployment Capability: Exceptionally suited for emergency rescue operations and lightweight military bridge designs, where minimal weight and rapid, cost-effective assembly are critical success factors.
A truly valuable engineering component proves its worth through adaptability. The 450-Connecting Plate is a highly versatile modular asset, designed to integrate seamlessly across a wide spectrum of bridge configurations and engineering scenarios.
Compact Temporary Bridges: The standard, reliable choice for double-row Bailey panels spaced at 450 mm, frequently utilized for light-to-medium load bearing requirements.
Chord Reinforcement: Ideal for the side connection of reinforced chords to main chords, securely fixing the reinforcement to the exterior profile of the structure.
Narrow Width Solutions: Perfectly suited for bridges with limited width constraints, such as 2.0 m single-lane crossings, utilizing the 450 mm row spacing to maintain a slim, efficient footprint.
Multi-Deck Integration: Serves as the critical lower deck transverse connection in double-deck Bailey bridges, keeping the complex structural framework tight and compact.
Expansion & Widening Projects: Frequently deployed in bridge widening initiatives where the required spacing between the existing structure and new panels is exactly 450 mm.
Installation Method Recommendation
First of all, an experienced construction team should be assigned to undertake the erection of the bridge.
We have studied the drawings of the erection site and surrounding area, and conclude that the installation site is spacious and flat,so we recommend the installation procedure as follows:
Assemble the bilateral bailey panels to two whole construction, including the lower chord reinforced、horizontal bracing、vertical bracing、male and female end post. every assembling unit is mainly composed by 27 pieces of bailey panel
Meanwhile, the bridge bearings are installed on the abutment. note that：check the length of the single whole bailey truss and the distance between the bolts of the two side of the river, if not fit , adjust the bolts.
Use suitable lorry-mounted crane to lift the two assembling truss unit and place them on the two side abutments.the single combined truss unit is weight about 11tons and 27.4 m length.
Install the transom, please refer the video.for the weight of one piece of transom is about not more than 1 ton，so it need a small crane. In order to increase the stability of the structure during the erection, the nearest transom and the farthest transom, as far as possible according to the capacity of the crane, should be installed first, then for other transoms between them.
Install the sway bracing，then pave the first row in width direction of bridge decking on the transoms, including the side and middle bridge decking.
Meanwhile, install the upper chord reinforced to strengthen the structure,then the crane could move onto the bridge decking to install the following ahead transoms,similar ways like upper procedure to be perform.
The rest can be done in the same manner.
Final, install the upper chord reinforced、curb、gap plate、handrail、 connective plate and handrail column.
Procuring heavy-duty structural components requires more than just receiving a physical product; it requires a partnership backed by deep engineering expertise. We eliminate technical uncertainties for your construction teams from day one.
Complimentary Structural Calculation: Our engineering team provides free, precise structure calculations to ensure the connecting plates perfectly match your specific load and environmental requirements.
Detailed Drafting Services: We supply comprehensive engineering drawings and customization blueprints, allowing your project managers to visualize the exact integration prior to deployment.
Comprehensive Installation Guides: Every order is supported by detailed manuals and video tutorials, visually demonstrating the optimal erection procedures and bolt tightening sequences.
On-Site Supervision: For complex or large-scale erections, we offer the option of dispatching experienced technical supervisors to your site to oversee the assembly process and ensure compliance.
Round-the-Clock Assistance: A dedicated 24-hour after-sales service team remains on standby to instantly resolve any technical queries during your construction phase.
Establishing a reliable supply chain means partnering directly with the source. As a primary manufacturer based in Zhenjiang, Jiangsu, we offer unparalleled transparency, quality control, and customization capabilities to meet your exact specifications.
Direct Production Base: Operating our own specialized production lines for Bailey bridges and parts ensures that you receive factory-direct value without intermediary markups.
Tailored Engineering: We fully support non-standard customizations, allowing adjustments to steel thickness, width, and specific hole configurations to meet unique project demands.
Advanced Anti-Corrosion Options: Beyond standard shot blasting, we offer custom hot-dip galvanization treatments to dramatically extend the lifespan of the plates in highly corrosive marine or industrial environments.
Certified Quality Assurance: Our entire manufacturing process is governed by strict ISO9001 certification, ensuring every batch meets rigorous national and international standards.
Complete Traceability: We provide comprehensive documentation for every shipment, including detailed material certificates, laboratory test reports, and official quality certificates.
The integrity of precision-engineered steel components must be preserved from the factory floor to the final construction site. We employ rigorous packaging protocols to guarantee that your materials arrive in pristine condition, regardless of the transit route.
Heavy-Duty Palletizing: Components are securely stacked and strapped onto robust wooden pallets or enclosed in reinforced wooden boxes, engineered to withstand the rigors of international transit.
Moisture-Proof Shielding: Each batch is meticulously wrapped in high-strength, moisture-proof plastic film, creating an impenetrable barrier against maritime humidity and harsh weather conditions.
Damage Prevention: The secure packaging strictly limits internal movement during long-haul sea or overland freight, drastically reducing the risk of impact damage, thread stripping, or surface abrasions.
Streamlined Site Handling: The standardized wooden packaging is specifically designed for rapid, safe unloading by forklifts and cranes upon arrival at the project site, saving valuable labor hours.
Selecting the right manufacturing partner is a critical decision that impacts the safety, timeline, and financial success of your infrastructure projects. We stand out as the definitive choice for structural steel components, offering reliability at every stage.
Decades of Specialized Expertise: We focus exclusively on the engineering and production of Bailey bridges and their intricate components, bringing unmatched domain knowledge to your projects.
End-to-End Solution Provider: From initial structural calculations and custom design drafting to final production and on-site installation guidance, we manage the entire lifecycle of your structural needs.
Uncompromising Quality Standards: Operating under an ISO9001-certified quality management system ensures that every plate, pin, and bolt performs flawlessly under extreme stress.
Global Supply Chain Reliability: With a massive production base and optimized logistics networks, we guarantee timely fulfillment and secure delivery for large-scale, time-sensitive deployments worldwide.
To assist procurement specialists and engineering teams in their decision-making process, we have compiled detailed answers to the most common technical and operational inquiries regarding our connecting plates.
We are a direct manufacturer headquartered in Zhenjiang, Jiangsu. We own and operate a comprehensive production base with dedicated manufacturing lines specifically engineered for Bailey bridges and their associated structural parts. This operational model allows us to maintain strict quality control and offer highly competitive, factory-direct value.
Our manufacturing facilities and processes are fully ISO9001 certified, and all our products strictly adhere to rigorous national engineering standards. With every order, we provide complete traceability documentation, including raw material certificates, comprehensive laboratory test reports, and official quality assurance certificates to satisfy your compliance requirements.
Yes, absolutely. While the standard finish includes shot blasting or sanding to a Sa2.5 cleanliness level to optimize friction-type connections, we offer highly customizable surface treatments. For projects located in marine, humid, or highly corrosive environments, we can apply specialized hot-dip galvanization to significantly enhance the component's anti-corrosion properties and overall operational lifespan.
We utilize advanced, computer-numerically-controlled (CNC) machining equipment to drill and finish the bolt holes. This technology allows us to strictly control the hole spacing tolerance to ≤ ±0.3 mm. Such micro-precision ensures there are no installation difficulties or forced alignments on-site, and prevents dangerous stress concentrations when the high-strength bolts are tensioned.
We provide extensive, multi-tiered technical support. Every delivery can be accompanied by detailed engineering drawings, comprehensive installation manuals, and instructional videos. For complex erections, we offer on-site supervision services where our experienced technicians guide your construction team. Furthermore, our after-sales service operates 24/7 to resolve any immediate technical challenges.
First, assign an experienced construction team and ensure the installation site is spacious and flat. The procedure generally involves: 1) Assembling the bilateral Bailey panels into two whole units (including lower chords, bracing, and end posts). 2) Using a suitable lorry-mounted crane to lift the assembled truss units onto the abutments. 3) Installing the transoms, starting from the nearest and farthest points to increase stability. 4) Installing sway bracing and paving the bridge decking, followed by upper chord reinforcement. 5) Finally, installing curbs, handrails, connective plates, and handrail columns.
